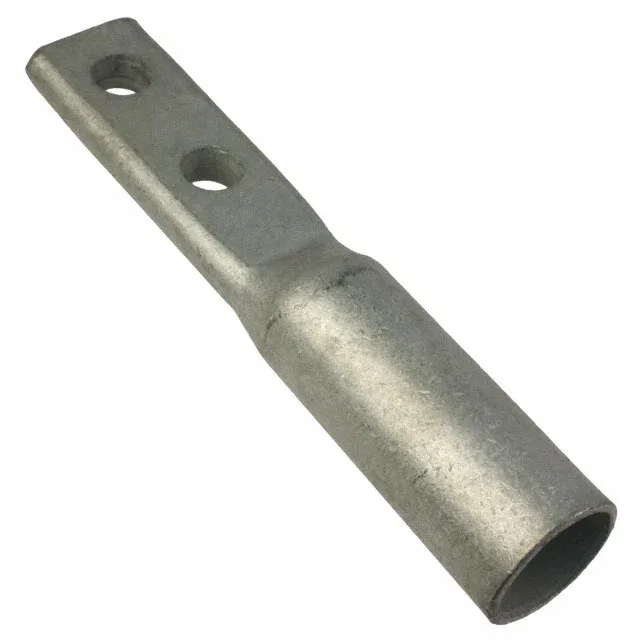

TE Connectivity AMP Connectors 277143-1
MPN277143-1
Active
CONN TERM RECT 4/0 AWG #5/16
$34.6Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAmpower
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Ampower |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 4/0 AWG |
| Terminal style | Two Stud Holes |
| Contact material | Copper |
| Width - outer edges | 0.830\" (21.08mm) |
| Package | Bulk |
| Insulation | Non-Insulated |
| Termination | Crimp, Barrel |
| Stud (Tab size) | 5/16 Stud |
| Tab thickness | 0.280\" (7.11mm) |
| Contact finish | Tin |
| Length - overall | 4.240\" (107.70mm) |
| Diameter - ring ID | 0.328\" (8.33mm) |
| Diameter - barrel ID | 0.648\" (16.46mm) |
| Diameter - barrel OD | 0.820\" (20.83mm) |
