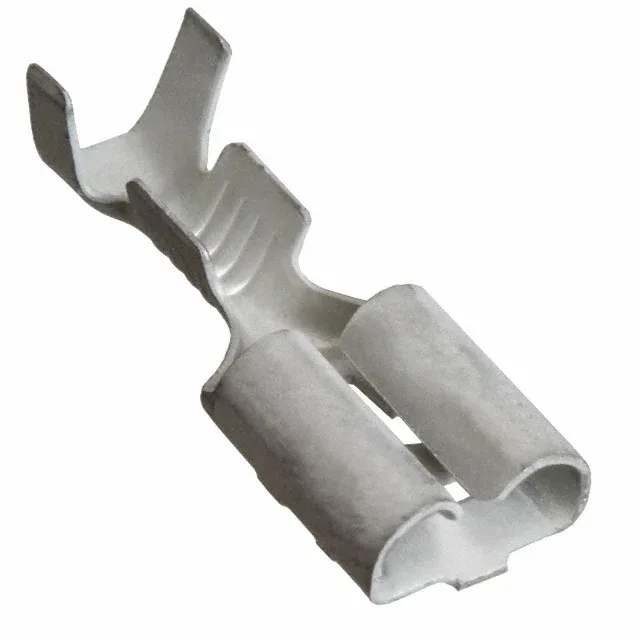

TE Connectivity AMP Connectors 280098-2
MPN280098-2
Active
CONN QC RCPT 13-17AWG 0.250
$0.38Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFastin-Faston
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Fastin-Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 13-17 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Phosphor Bronze |
| Gender | Female |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.307\" (7.80mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Length - overall | 0.772\" (19.61mm) |
| Insulation diameter | 0.118\" ~ 0.157\" (3.00mm ~ 3.99mm) |
