Board-to-board or cable header with detent lock
Pitch, current, and voltage for BOM fit
The 0.100" (2.54 mm) pitch and 4 positions match standard 0.100" grid layouts. Each contact is rated 3 A at 40 V, typical for signal-level interconnects.

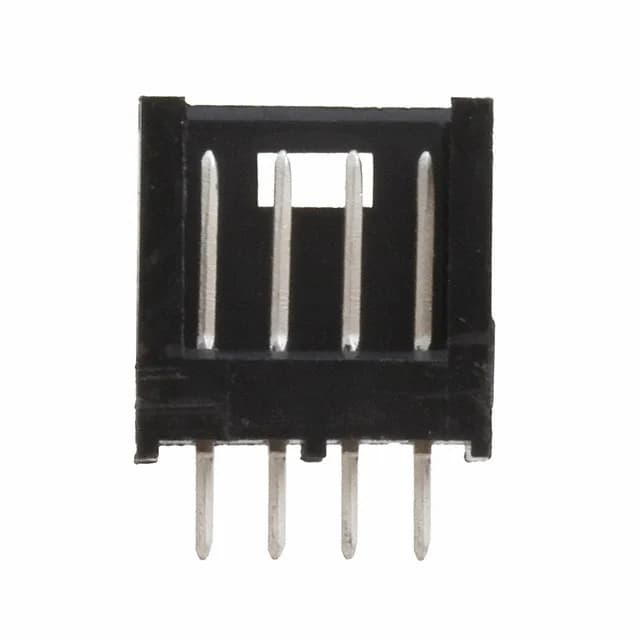

280371-1 TE Connectivity AMPMODU Mod II Header, 4 Pos
MPN280371-1
Active
TE Connectivity AMP Connectors AMPMODU Mod II header, 280371-1, 4 positions, 0.100" (2.54 mm) pitch, single row, shrouded-3 wall, through-hole solder, detent lock, tin-plated contacts, 3 A, 40 V, UL94 V-0.
$0.7800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU Mod II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 40V |
| Current rating | 3A |
| Operating temperature | -40°C ~ 80°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.496\" (12.60mm) |
| Insulation material | Thermoplastic |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Shrouded - 3 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Overall contact length | 0.563\" (14.30mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.260\" (6.60mm) |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 118.1µin (3.00µm) |
Product details
Frequently asked questions
What is the pinout of 280371-1?
The 280371-1 is a single-row, 4-position header with all positions loaded. Pin 1 is typically marked by a square pad or chamfer on the housing; the remaining pins are in-line at 0.100" spacing.
What is the closest functional second-source for 280371-1?
The 280372-1 is identical except for 6 positions instead of 4. Both share the same pitch, current rating, voltage, shrouding, and locking. For a 4-position requirement, 280371-1 is the direct part.
