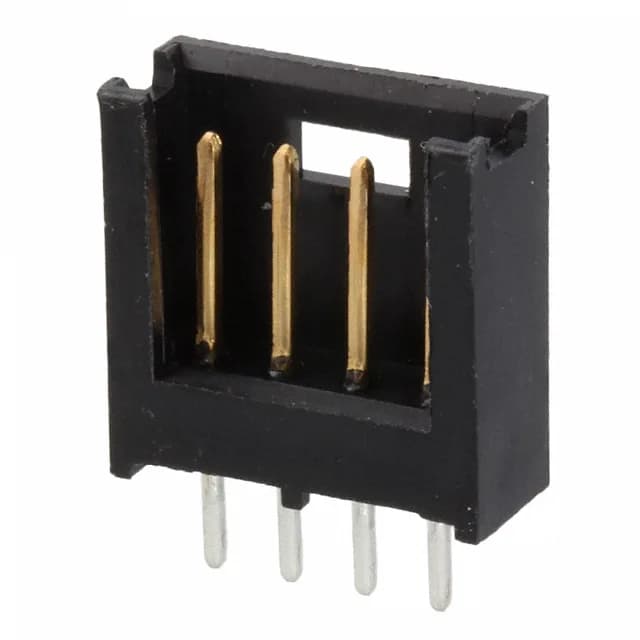

TE Connectivity AMPMODU Mod II, 280371-3, Board to Board or Cable, Header, Male Pin, 4 Positions, 0.100" (2.54mm) Pitch, Through Hole, Solder, Gold Mating Finish, Detent Lock, Black Thermoplastic Housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 40V |
| Current rating | 3A |
| Operating temperature | -40°C ~ 80°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.496\" (12.60mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Shrouded - 3 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Overall contact length | 0.563\" (14.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.260\" (6.60mm) |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
The 280371-3: Derate current if ambient exceeds 80°C.
The 0.260" (6.60mm) mating pin length provides sufficient engagement depth for standard AMPMODU Mod II receptacles.
The base product number is 280371, which covers the family of single-row, shrouded headers in this series.
Yes, the 280371-3 is ROHS3 Compliant per the manufacturer's listing.
This header mates with AMPMODU Mod II receptacles of the same pitch (0.100") and circuit count (4 positions). The detent lock on the header engages with the corresponding latch on the receptacle housing. Confirm the receptacle part number against your assembly drawing.
