TE Connectivity AMP Connectors 280372-2 — Pin Headers

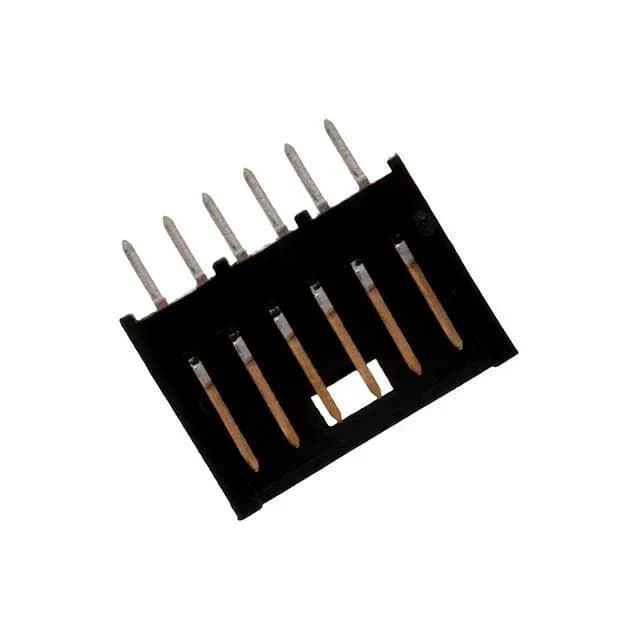

280372-2 TE Connectivity AMP Connectors Pin Header, 6 Pos

MPN280372-2
Active

TE Connectivity AMP Connectors AMPMODU Mod II Header, 6 Positions, 0.100" (2.54mm) Pitch, Through Hole, Solder, Gold Mating Contact, Detent Lock, UL94 V-0, Active

$1.3400Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU Mod II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

280372-2 key specifications
ParameterValue
SeriesAMPMODU Mod II
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeDetent Lock
Voltage rating40V
Current rating3A
Operating temperature-40°C~80°C
Contact materialBrass
Insulation colorBlack
Insulation height0.496\" (12.60mm)
Insulation materialThermoplastic

All specifications

280372-2 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
ShroudingShrouded - 3 Wall
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions6
Contact finish - postTin
Contact length - post0.138\" (3.50mm)
Overall contact length0.563\" (14.30mm)
Contact finish - matingGold
Contact length - mating0.260\" (6.60mm)
Contact finish thickness - post98.4µin (2.50µm)
Contact finish thickness - mating16.0µin (0.41µm)

Product details

The 280372-2: Six positions in a single row keep the connector narrow, which helps when you're squeezing it between components on a tight board edge.

Shrouded Housing and Detent Lock — Fit for Vibration

The 3-wall shroud surrounds the pins on three sides, guiding the mating receptacle and preventing bent pins during blind-mate assembly. The detent lock clicks into the mating half's latch window — it won't back out under moderate vibration, though for high-shock environments you'd want a latch holder or secondary lock.

RoHS compliant.

How It Stacks Against a Peer — 1394090-1

The 280372-2 is vertical, 3-wall, detent-lock, with gold on the mating side. If your application needs the stronger latch and right-angle orientation, 1394090-1 is the alternative — but the tin mating surface limits it to fewer mating cycles (typically 50-100) compared to the gold on this part.

Frequently asked questions

What is the pitch of the 280372-2?

The mating pitch is 0.100" (2.54mm).

Is the 280372-2 RoHS compliant?

Yes, it is RoHS Compliant.
