The 280373-2 is an 8-position, single-row header from the TE AMPMODU Mod II series. A detent lock holds the mating half in place under vibration — a practical advantage in equipment that sees transport or fan-induced shake.

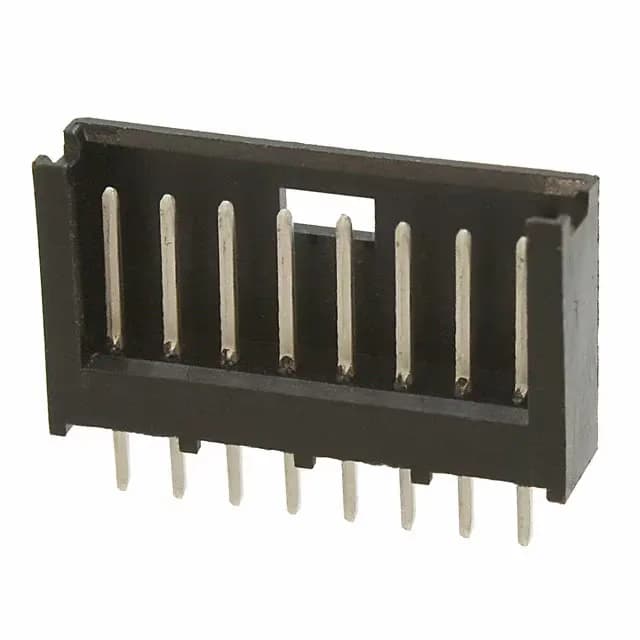

280373-2 TE Connectivity AMP Connectors Pin Header, 8 Pos
MPN280373-2
Active
TE Connectivity AMPMODU Mod II header, 280373-2, 8 circuits, 0.100" (2.54mm) pitch, single-row, shrouded 3-wall, through-hole solder, gold-plated mating pins, rated 3A at 40V.
$2.6000Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU Mod II
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 40V |
| Current rating | 3A |
| Operating temperature | -40°C~80°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.496\" (12.60mm) |
| Insulation material | Thermoplastic |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Shrouded - 3 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Overall contact length | 0.563\" (14.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.260\" (6.60mm) |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
What is the pitch and position count of 280373-2?
0.100" (2.54mm) pitch, 8 positions, single row, all positions loaded.
