Board-to-board or cable header with detent lock

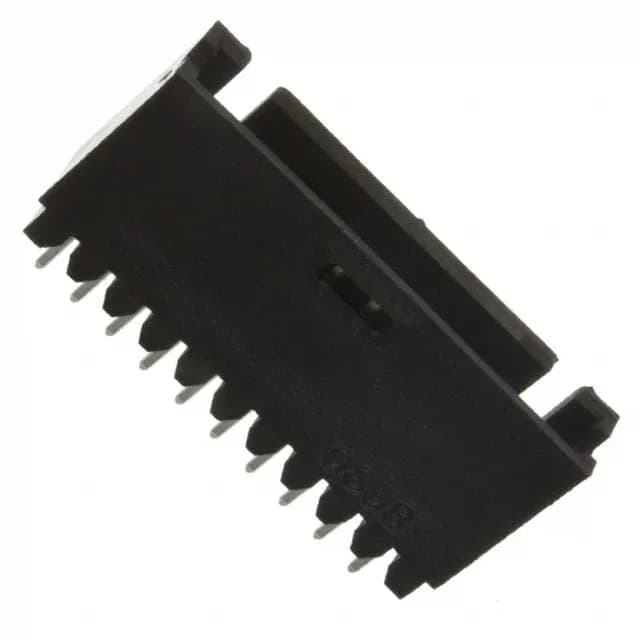

280374-1 is a 10-position, single-row, shrouded-3 wall header from the AMPMODU Mod II series, designed for board-to-board or cable mating with a 0.100" (2.54mm) pitch. The detent lock provides positive retention against vibration, while the through-hole solder termination and tin-plated contacts (118.1 µin on both mating and post) suit standard wave-solder assembly.
Current, voltage, and temperature envelope
Rated 3 A per contact at 40 V, with an operating temperature range of -40°C to 80°C. The thermoplastic housing carries a UL94 V-0 flammability rating, meeting the flame-retardant requirement for equipment inside an enclosure.
Active production and sourcing
Sourced to order against BOM quantities; current pricing and lead time confirmed at quote time.
