15-position, 0.100" pitch, shrouded header — board-to-board or cable

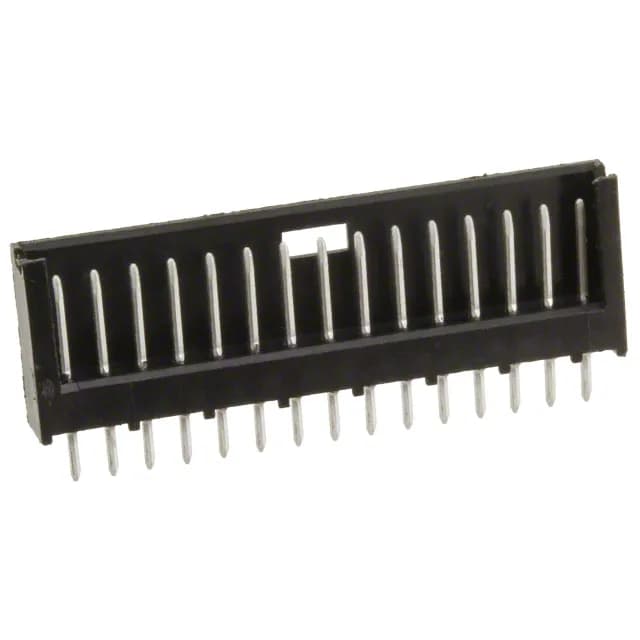

The 280375-1 is a TE Connectivity AMPMODU Mod II pin header with 15 positions loaded in a single row on 0.100" (2.54mm) pitch. It is a shrouded 3-wall header with a detent lock, rated 3 A per contact at 40 V, and operates from -40°C to 80°C.
Detent lock and 3-wall shroud for vibration resistance
The 3-wall shroud protects the mating pins from side impact during cable assembly insertion.
Active production, ROHS3, and sourcing
This header mates with a standard AMPMODU Mod II receptacle or IDC socket housing that accepts 0.100" pitch, single-row, 15-position female connectors with a detent lock feature.
