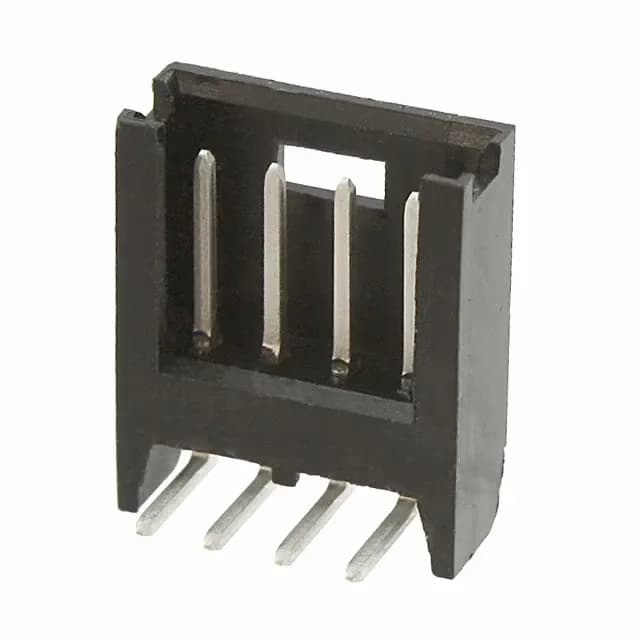

TE Connectivity AMPMODU Mod II, 280378-1, 4-position, 0.100" (2.54mm) pitch, single-row, through-hole right-angle, shrouded male pin header, tin-plated contacts, detent lock, UL94 V-0, ROHS3 compliant, active production.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 40V |
| Current rating | 3A |
| Operating temperature | -40°C~80°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.197\" (5.00mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Shrouded - 3 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.260\" (6.60mm) |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 118.1µin (3.00µm) |
The closest functional sibling is 1394090-1: a 6-position, single-row, right-angle header with a 0.112" (2.85mm) pitch and a 4-wall shroud with latch holder. If your BOM needs two more circuits and a wider pitch, that part is the direct step-up — but the 0.100" footprint of 280378-1 is more common for standard 2.54mm receptacles.
The 0.260" (6.60mm) mating pin length provides sufficient engagement depth for most Mod II receptacles.
