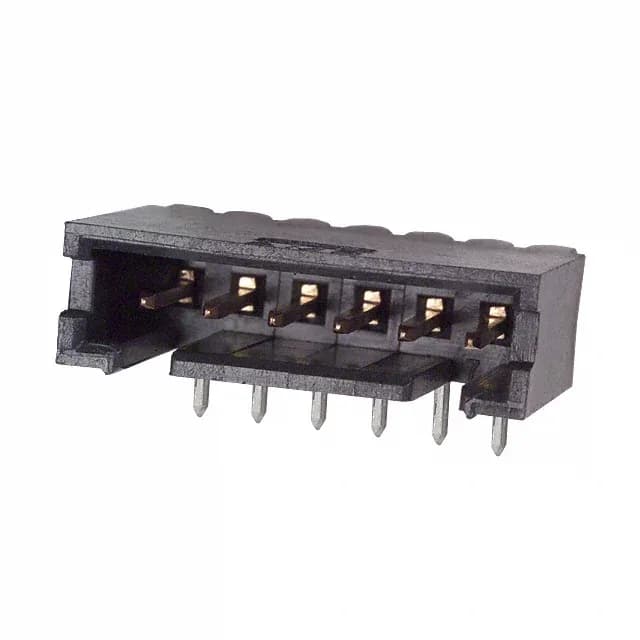

TE Connectivity AMPMODU Mod II, Header, 6 Positions, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Gold Mating, 3A, 40V, UL94 V-0, Black, Bulk
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 40V |
| Current rating | 3A |
| Operating temperature | -40°C~80°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.197\" (5.00mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Shrouded - 3 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.260\" (6.60mm) |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The post finish is tin (98.4 µinch), which solders reliably into plated through-holes.
When the gold mating finish or detent lock is not required, the 1394090-1 offers a tin-on-tin contact interface with a 4-wall shroud and latch-holder fastening — same 6 positions, same right-angle through-hole footprint, but on a 0.112" (2.85 mm) pitch. The tin plating reduces per-contact cost at the expense of mating cycle life (typically 50-100 cycles vs 500+ for gold).
280379-2 is sourced to order against your BOM quantity.
The closest functional alternative is 1394090-1 — same 6 positions, right-angle through-hole, but with tin mating contacts, a 4-wall shroud, and a latch-holder instead of detent lock. Pitch differs slightly (0.112" vs 0.100"), so verify board layout compatibility.
