Through-hole right-angle, 3-wall shrouded

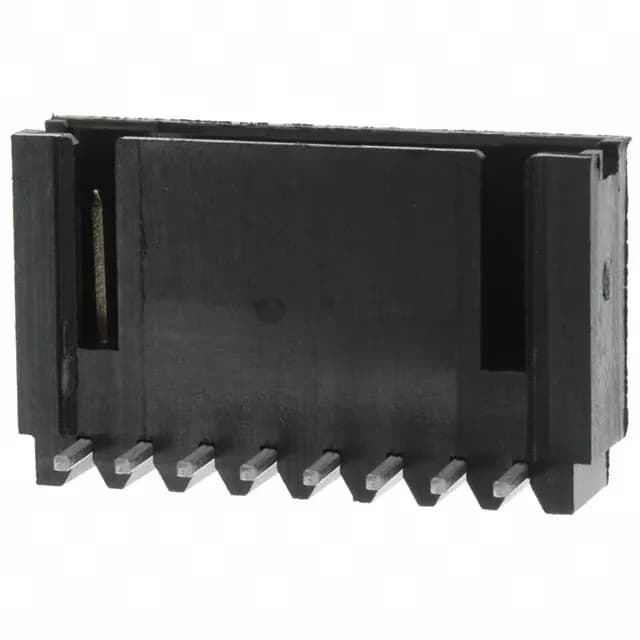

The 280380-2 is the 8-position member of TE's AMPMODU Mod II header line, a single-row, through-hole right-angle male pin header with a 3-wall shroud and detent lock.
TE AMPMODU Mod II 280380-2 Header, 8 Pos 2.54mm
MPN280380-2
Active
TE Connectivity AMP Connectors AMPMODU Mod II header, order code 280380-2, 8 positions, single row, 0.100" (2.54mm) pitch, 3A, 40V, gold-plated mating contacts, through-hole right-angle, solder termination.
$2.6500Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 40V |
| Current rating | 3A |
| Operating temperature | -40°C~80°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.197\" (5.00mm) |
| Insulation material | Thermoplastic |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Shrouded - 3 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.260\" (6.60mm) |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
Where can I buy 280380-2 and how do I get a price?
The 280380-2 is orderable under the listed part number.
What compliance documentation does TE Connectivity AMP Connectors provide for 280380-2?
RoHS and REACH documentation is provided by TE Connectivity AMP Connectors; consult the product drawing for the latest compliance declarations.
