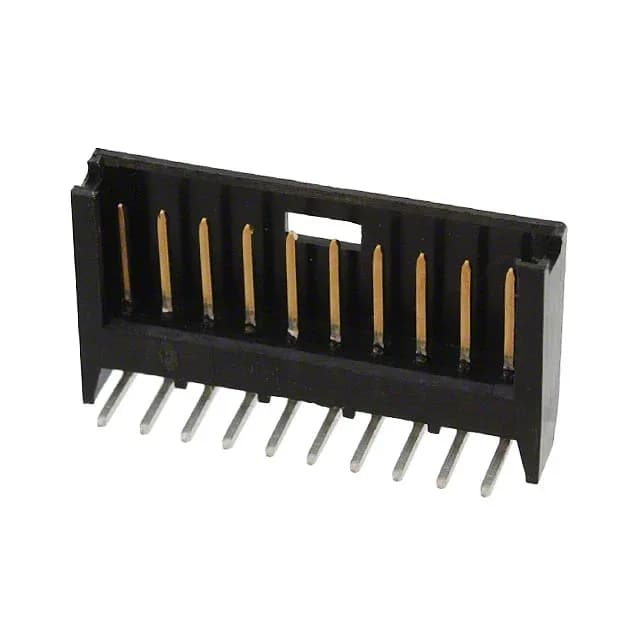

TE Connectivity AMPMODU Mod II header, 280381-2, 10-position single-row, 0.100" (2.54mm) pitch, right-angle through-hole, shrouded 3-wall, gold-plated mating pins, detent lock, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 40V |
| Current rating | 3A |
| Operating temperature | -40°C ~ 80°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.197\" (5.00mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Shrouded - 3 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.260\" (6.60mm) |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The detent lock snaps into the mating receptacle's ramp, giving a positive hold without a separate locking clip — a practical choice for enclosures that see vibration.
The current ceiling is set by the thermoplastic housing (UL94 V-0) and the contact-to-contact temperature rise; stay below 3 A per pin in continuous service. Voltage rating is 40 V — this is a signal-level header, not a power interconnect.
0.100" (2.54mm) pitch, single row, 10 positions loaded.
Yes, it is a through-hole, right-angle header — the pins exit parallel to the PCB.
