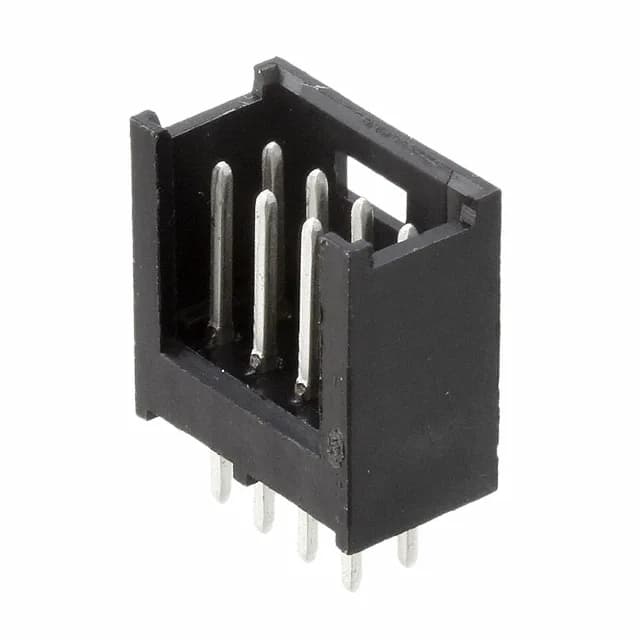

TE Connectivity AMP Connectors AMPMODU Mod II, Header, 8 Positions, 0.100" (2.54 mm) Pitch, Through Hole, Tin Plating, 3 A, 40 V, Shrouded - 3 Wall, Detent Lock, UL94 V-0, Active
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 40V |
| Current rating | 3A |
| Operating temperature | -40°C~80°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.496\" (12.60mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Shrouded - 3 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Overall contact length | 0.563\" (14.30mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.260\" (6.60mm) |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 118.1µin (3.00µm) |
The 280384-1: The shrouded 3-wall design with a detent lock keeps the mating receptacle aligned and prevents accidental disconnection under vibration — a solid choice for wire-to-board harnesses in industrial control or test equipment where the cable gets tugged.
Peer MPNs 4-1775099-7, 1-1871673-2, and 1379030-3 are also AMPMODU Mod II headers but differ in position count, plating, or shroud height.
The mating pitch is 0.100" (2.54 mm), same for row spacing.
Through hole — the 0.138" (3.50 mm) post length is designed for solder to a standard PCB.
Yes, ROHS3 compliant per the lifecycle record.
Confirm the position count and keying match your harness.
Board to Board or Cable — it can connect a PCB to another board or to a cable harness via a mating receptacle.
