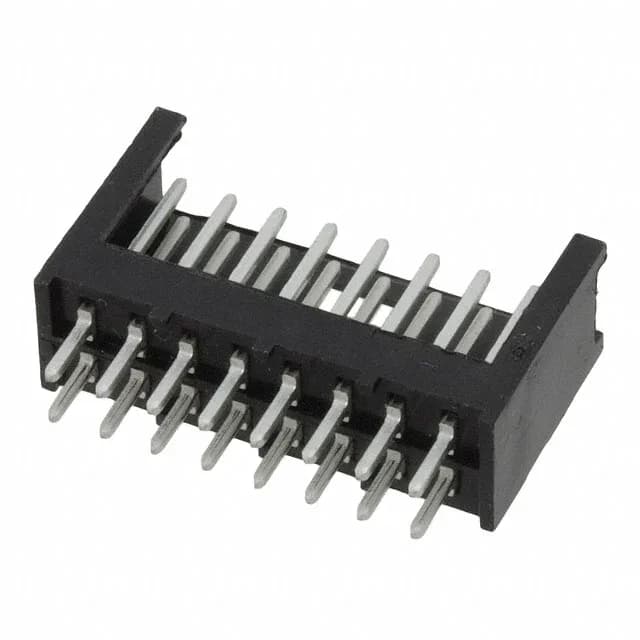

TE Connectivity AMP Connectors AMPMODU Mod II, 280385-1, Header, 16 Positions, 2 Rows, 0.100" (2.54mm) Pitch, Through Hole, Shrouded - 3 Wall, Detent Lock, Tin Contacts, 3A, -40°C ~ 80°C, UL94 V-0, RoHS3 Compliant, Active
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 40V |
| Current rating | 3A |
| Operating temperature | -40°C ~ 80°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.496\" (12.60mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Shrouded - 3 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Overall contact length | 0.563\" (14.30mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.260\" (6.60mm) |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 118.1µin (3.00µm) |
The 280385-1: Rated at 3A per contact with a -40°C to 80°C operating range, this header suits signal-level and moderate power distribution inside enclosed equipment.
The detent lock provides a positive retention force when mated, helping maintain connection under moderate vibration — a practical feature for cable assemblies that see handling.
Yes, the 280385-1 is RoHS3 compliant.
The current rating is 3A per contact.
The 280385-1 mates with standard AMPMODU Mod II receptacles or IDC sockets designed for 0.100" pitch, 2-row configurations. Confirm the mating half part number against your assembly drawing.
