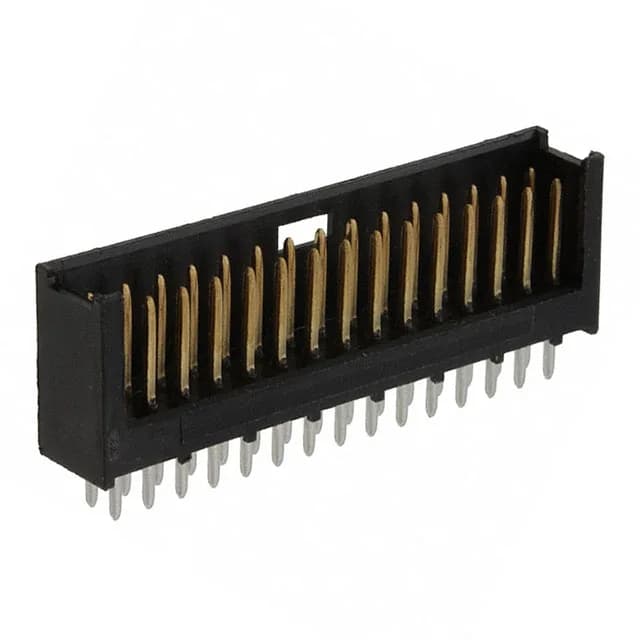

TE Connectivity AMP Connectors AMPMODU Mod II header, 280387-2, 30 positions, 2 rows, 0.100" (2.54 mm) pitch, shrouded-3 wall, through-hole solder, detent lock, gold mating finish, 3 A, -40°C to 80°C, UL94 V-0, Active, ROHS3
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 40V |
| Current rating | 3A |
| Operating temperature | -40°C ~ 80°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.496\" (12.60mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Shrouded - 3 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 30 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Overall contact length | 0.563\" (14.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.260\" (6.60mm) |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 280387-2: Both the mating pitch and row spacing are 0.100" (2.54 mm), matching the standard AMPMODU Mod II footprint — no board redesign needed if you already use this series. The 0.496" (12.60 mm) insulation height and 0.563" (14.30 mm) overall contact length fit typical through-hole stack-ups with a 0.062" board.
The detent lock requires a receptacle with a matching latch feature.
The detent lock provides positive retention against vibration without additional hardware, making it suitable for moderate vibration environments typical of industrial control cabinets.
