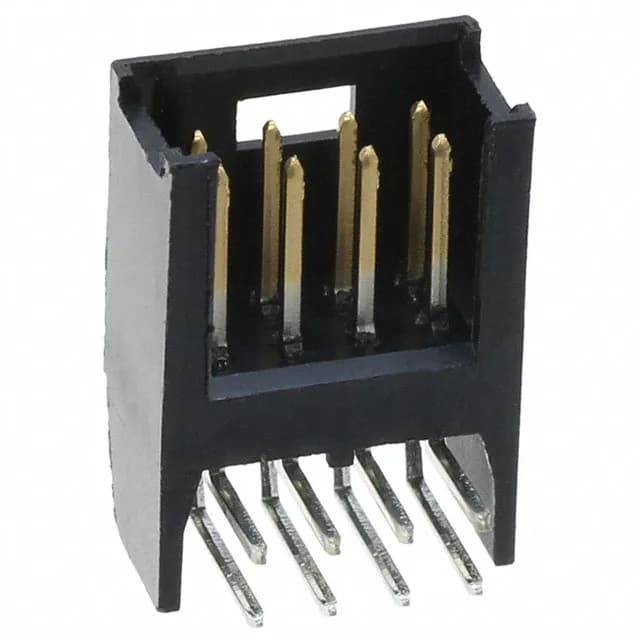

TE Connectivity AMP Connectors 280389-2, AMPMODU Mod II, 8-position, 2-row, 0.100" (2.54mm) pitch, right-angle, shrouded header with detent lock, gold-plated mating contacts, 3 A rating, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 40V |
| Current rating | 3A |
| Operating temperature | -40°C ~ 80°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.276\" (7.00mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Shrouded - 3 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.260\" (6.60mm) |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The post tails are tin-plated for solderability.
The detent lock on the shroud provides a positive retention force against vibration without a separate latch mechanism — the header and its mating housing click together and stay mated under moderate shock.
