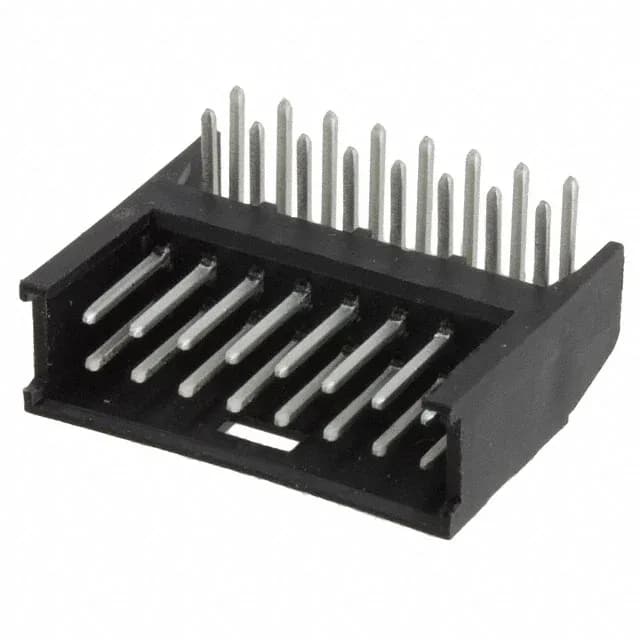

TE Connectivity AMP Connectors AMPMODU Mod II Header, 16 circuits, 0.100" (2.54 mm) pitch, shrouded 3-wall, right-angle through-hole, tin-plated male pins, detent lock, UL94 V-0, rated 3 A at 80 °C.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 40V |
| Current rating | 3A |
| Operating temperature | -40°C ~ 80°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.276\" (7.00mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Shrouded - 3 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.260\" (6.60mm) |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 118.1µin (3.00µm) |
Each contact is rated 3 A at the 80 °C upper operating limit — the tin-plated brass pins carry signal and low-power loads without significant derating inside a ventilated enclosure. The UL94 V-0 thermoplastic housing (black) holds up to 40 V between circuits, and the 118.1 µin (3.00 µm) tin finish on both mating and post ends provides adequate corrosion resistance for indoor use.
It is a 16-position, dual-row header with a 0.100" (2.54 mm) pitch on both rows and row spacing.
