TE Connectivity AMP Connectors 280390-2 — Pin Headers

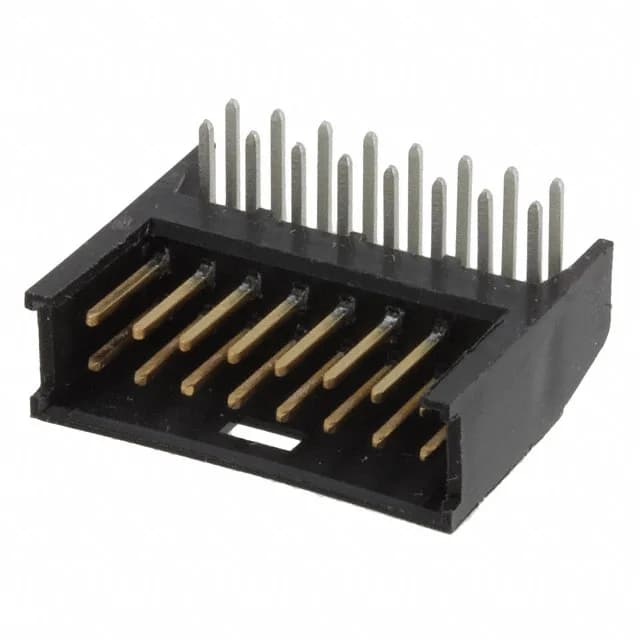

280390-2 TE Connectivity AMPMODU Mod II Header, 16 Pos

MPN280390-2
Active

TE Connectivity AMP Connectors AMPMODU Mod II header, 16 positions, 0.100" (2.54mm) pitch, right-angle through-hole, shrouded 3-wall, gold-plated male pins, 3 A, 40 V, UL94 V-0.

$3.0600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU Mod II
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

280390-2 key specifications
ParameterValue
SeriesAMPMODU Mod II
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeDetent Lock
Voltage rating40V
Current rating3A
Operating temperature-40°C ~ 80°C
Contact materialBrass
Insulation colorBlack
Insulation height0.276\" (7.00mm)
Insulation materialThermoplastic

All specifications

280390-2 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
ShroudingShrouded - 3 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions16
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.138\" (3.50mm)
Contact finish - matingGold
Contact length - mating0.260\" (6.60mm)
Contact finish thickness - post98.4µin (2.50µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

16-position right-angle header with detent lock

The 280390-2 is a 16-position, dual-row header from the AMPMODU Mod II series. Right-angle orientation routes the cable parallel to the PCB, saving z-height in space-constrained enclosures. The detent lock provides audible feedback on mate and resists vibration-induced disconnect.

Board-to-board or cable duty

Rated for board-to-board or cable-to-board interconnects. The shrouded 3-wall design protects the male pins during handling and guides the mating receptacle into alignment.
