TE Connectivity AMP Connectors 280509-1 — Pin Headers

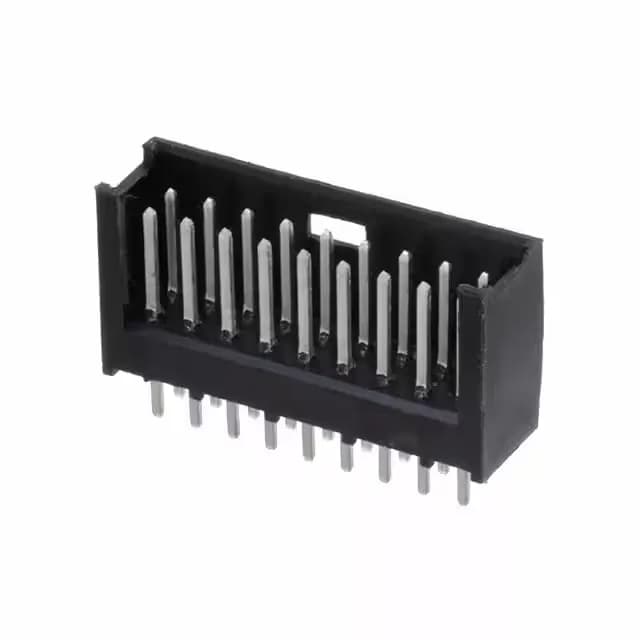

280509-1 TE Connectivity AMPMODU Mod II Header, 18 Pos

MPN280509-1
Active

TE Connectivity AMP Connectors AMPMODU Mod II header, 280509-1, 18 positions, 0.100" (2.54 mm) pitch, 2 rows, through-hole, shrouded with detent lock, tin-plated contacts, 3 A, 40 V, UL94 V-0.

$2.9900Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 280509-1 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPMODU Mod II
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

280509-1 key specifications
ParameterValue
SeriesAMPMODU Mod II
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeDetent Lock
Voltage rating40V
Current rating3A
Operating temperature-40°C~80°C
Contact materialBrass
Insulation colorBlack
Insulation height0.496\" (12.60mm)
Insulation materialThermoplastic

All specifications

280509-1 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
ShroudingShrouded - 3 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions18
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.138\" (3.50mm)
Overall contact length0.563\" (14.30mm)
Contact finish - matingTin
Contact length - mating0.260\" (6.60mm)
Contact finish thickness - post118.1µin (3.00µm)
Contact finish thickness - mating118.1µin (3.00µm)

Product details

18-Position Shrouded Header with Detent Lock

The 280509-1: The shrouded 3-wall design and integral detent lock provide positive mating alignment and vibration resistance — the lock clicks home when the receptacle is fully seated, preventing accidental disconnection in equipment that sees shock or cable tug. The 0.260" (6.60 mm) mating pin length gives good wipe depth for reliable contact with standard AMPMODU receptacles.

Sourced through independent distribution — quoted to order against your BOM quantity; availability and current pricing confirmed at quote time.

This header mates with AMPMODU Mod II receptacles and female socket housings that accept 0.025" square posts on 0.100" centers. The detent lock engages with the matching ramp on the receptacle — confirm the receptacle part number includes the lock feature. Termination is solder to the PCB; the through-hole tails are tin-plated (118.1 µin) for good solder wetting.

Frequently asked questions

Is 280509-1 RoHS compliant?

Yes, 280509-1 is ROHS3 Compliant.

What is the mating connector for 280509-1?

This header mates with AMPMODU Mod II receptacles and female socket housings designed for 0.025" square posts on 0.100" centers, with a detent-lock feature. Confirm the receptacle part includes the locking ramp.

What is the pinout configuration of 280509-1?

It is an 18-position, dual-row header with all positions loaded. Row spacing is also 0.100" (2.54 mm).
