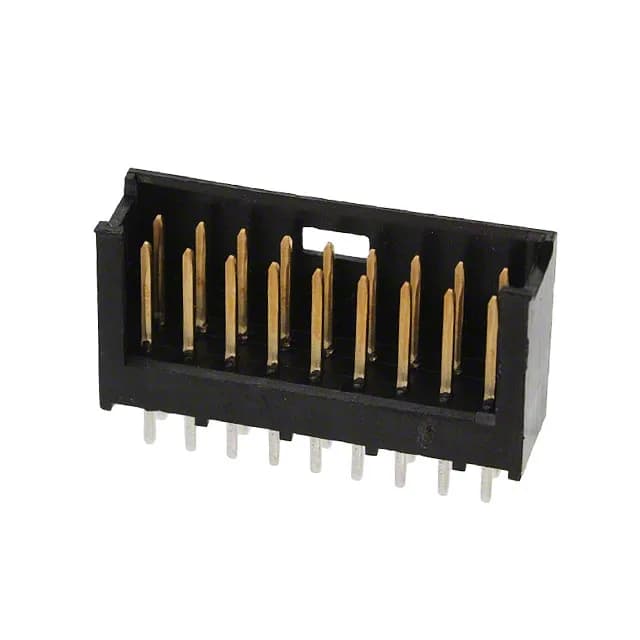

TE Connectivity AMPMODU Mod II, 280509-2, shrouded header, 18 positions, dual-row, 0.100" (2.54mm) pitch, through-hole solder, gold mating finish, detent lock, 3 A, 40 V, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 40V |
| Current rating | 3A |
| Operating temperature | -40°C ~ 80°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.496\" (12.60mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Shrouded - 3 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 18 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Overall contact length | 0.563\" (14.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.260\" (6.60mm) |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 280509-2 is a TE Connectivity AMPMODU Mod II shrouded header, 18 positions in two rows, on a 0.100" (2.54mm) pitch. It mates with matching AMPMODU receptacles for board-to-board or cable-to-board connections.
With 18 positions loaded across two rows, this header fits designs needing a moderate circuit count in a compact footprint.
It is a shrouded header with three walls (Shrouded - 3 Wall), which protects the mating pins and guides the receptacle during engagement.
It mates with AMPMODU Mod II receptacles of the same pitch and position count. The detent lock requires a matching receptacle with the locking ramp.
