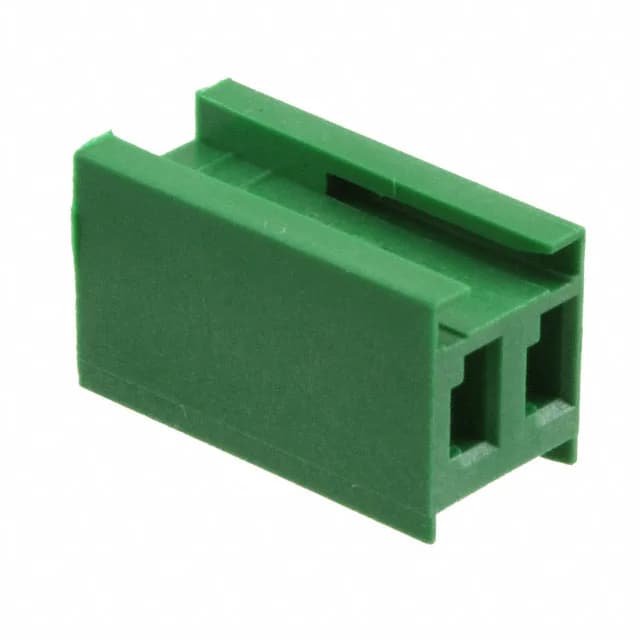

TE Connectivity AMPMODU Mod I receptacle housing, 280590, 2 positions, 1 row, 0.156" (3.96mm) pitch, free-hanging (in-line), female socket contacts, crimp termination, green, bulk.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod I |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Color | Green |
| Note | Contacts Not Included |
| Pitch | 0.156\" (3.96mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 2 |
The TE 280590 is a 2-position, single-row AMPMODU Mod I receptacle housing. The green colour distinguishes it from natural or white siblings on the harness board.
Because the housing is free-hanging, it is used as a wire-to-board inline connector — no PCB footprint on this side.
The 280590 is a receptacle housing only — contacts are not included. You need TE AMPMODU Mod I female socket crimp contacts, typically 0.156" pitch, 20-24 AWG range. Order the housing and contacts as separate BOM lines.
Submit an RFQ for current pricing and availability — confirmed at quote time.
