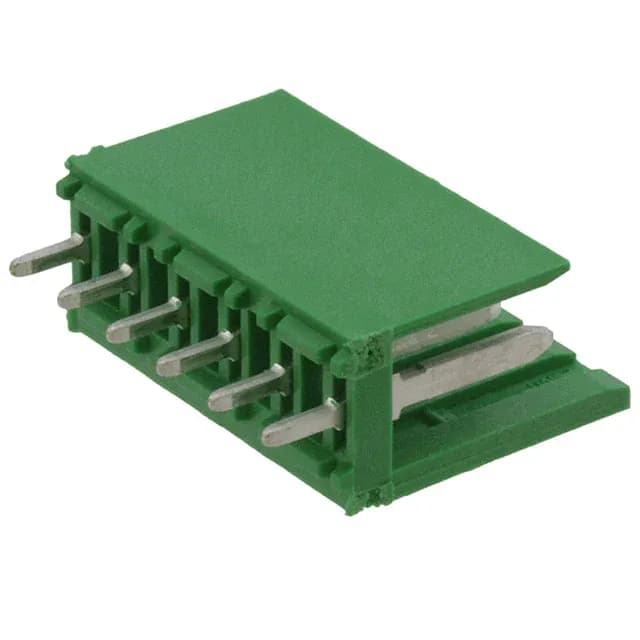

TE Connectivity AMPMODU Mod I Header, 6 positions, 0.156" (3.96mm) pitch, shrouded-2 wall, detent lock, through hole, tin-plated male pins, UL94 V-0, green insulation.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod I |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.913\" (23.20mm) |
| Insulation material | Polycarbonate, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.642\" (16.30mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.394\" (10.00mm) |
The shrouded-2 wall design and detent lock provide positive retention against vibration, a step up from unshrouded pin strips.
The wider spacing allows larger PCB traces between pins and reduces routing congestion for power or mixed-signal layouts. The through-hole mounting with 0.130" (3.30mm) post length suits standard 1.6mm PCBs.
The 280611-1 uses a 0.156" (3.96mm) pitch and through-hole vertical mounting. The 1-292164-1 uses a 0.079" (2.00mm) pitch and right-angle mounting—different footprint, different orientation.
The datasheet is available from TE Connectivity. The base product number is 280611.
