The 280611-2: The 3.96mm pitch sets the board footprint and the per-contact current ceiling — at this spacing the header mates with a standard AMPMODU Mod I receptacle housing that accepts crimp terminals. The 6 positions are all loaded, single row, so the mating receptacle must also be a 6-position single-row housing.
280611-2 TE Connectivity AMPMODU Mod I Header, 6 Pos
MPN280611-2
Active

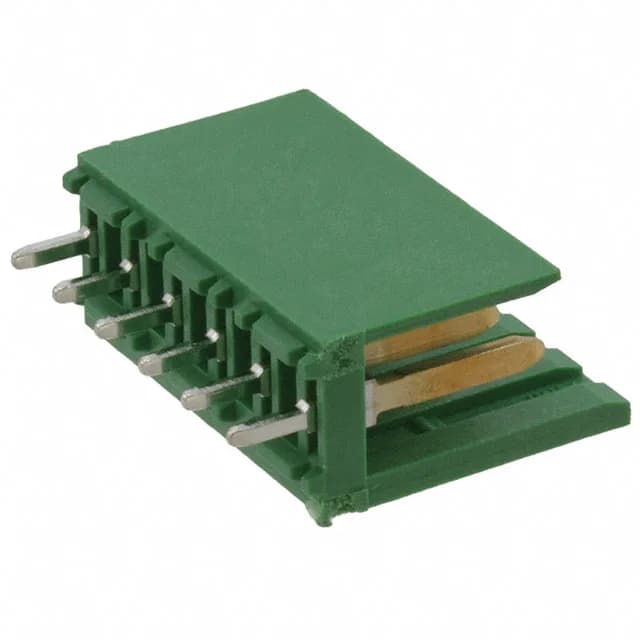

TE Connectivity AMPMODU Mod I header, 280611-2, 6 positions, 3.96mm pitch, single row, shrouded 2-wall, through-hole solder, gold mating finish, detent lock, UL94 V-0, green insulation.
$2.5800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU Mod I
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod I |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.913\" (23.20mm) |
| Insulation material | Polycarbonate, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.642\" (16.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.394\" (10.00mm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
What is the pin pitch of 280611-2?
The pin pitch is 3.96mm (0.156"). This is the centre-to-centre spacing between adjacent pins in the single row.
Is 280611-2 RoHS compliant?
Yes, 280611-2 is ROHS3 compliant.
