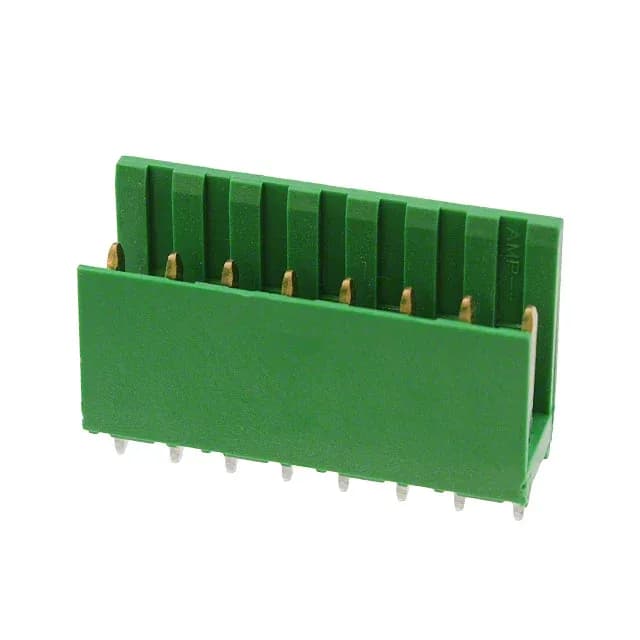

TE Connectivity AMPMODU Mod I, 280612-2, Board to Board or Cable, Header, Male Pin, 8 Positions, 0.156" (3.96mm) Pitch, Through Hole, Solder, Shrouded - 2 Wall, Detent Lock, Green Insulation, UL94 V-0
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod I |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.913\" (23.20mm) |
| Insulation material | Polycarbonate, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.642\" (16.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.394\" (10.00mm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 280612-2 is an 8-position, single-row header from TE's AMPMODU Mod I series, with a 0.156" (3.96mm) pitch that suits wire-to-board power or signal connections where the board footprint has room for a wider pitch than 0.100". The shrouded 2-wall housing and detent lock mean the mating receptacle clicks into place and holds under vibration—useful in industrial control panels or equipment that sees transport shock.
Submit a BOM quantity request for a sourcing response.
The 280612-2 is a shrouded header with a detent lock. It mates with AMPMODU Mod I receptacle housings that accept the matching crimp terminals—typically a 0.156" pitch, 8-position housing with a detent lock feature. Confirm the specific housing part number against the TE catalog for the exact fit.
