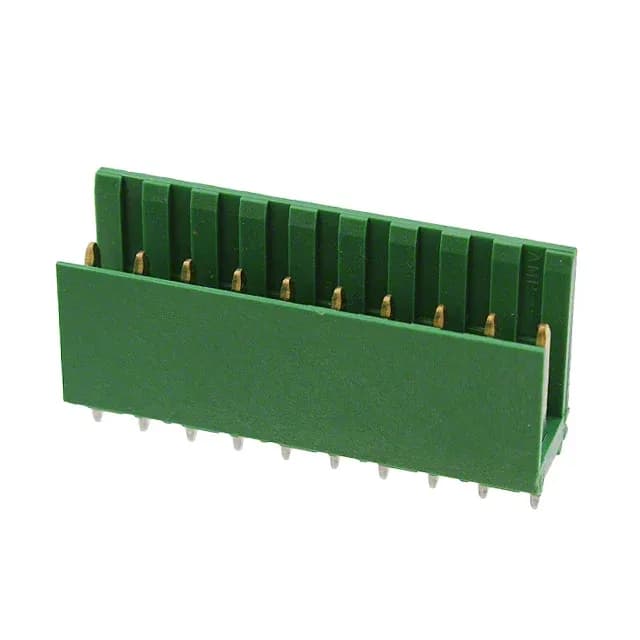

TE Connectivity AMP Connectors AMPMODU Mod I header, 280613-2, 10 positions, 0.156" (3.96mm) pitch, single row, through hole, shrouded 2-wall, detent lock, gold mating contacts, UL94 V-0 housing.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod I |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.913\" (23.20mm) |
| Insulation material | Polycarbonate, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.642\" (16.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.394\" (10.00mm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 280613-2 is a 10-position, single-row pin header from the AMPMODU Mod I series, on a 0.156" (3.96mm) pitch. It is a shrouded 2-wall header with a detent lock for secure mating in board-to-board or cable applications. The through-hole solder termination and green glass-filled polycarbonate housing (UL94 V-0) suit it for general-purpose PCB interconnect in moderate-duty environments.
The 280613-2 has a 0.156" (3.96mm) pitch and 10 positions, all loaded, in a single row. It is a through-hole, shrouded header with a detent lock.
