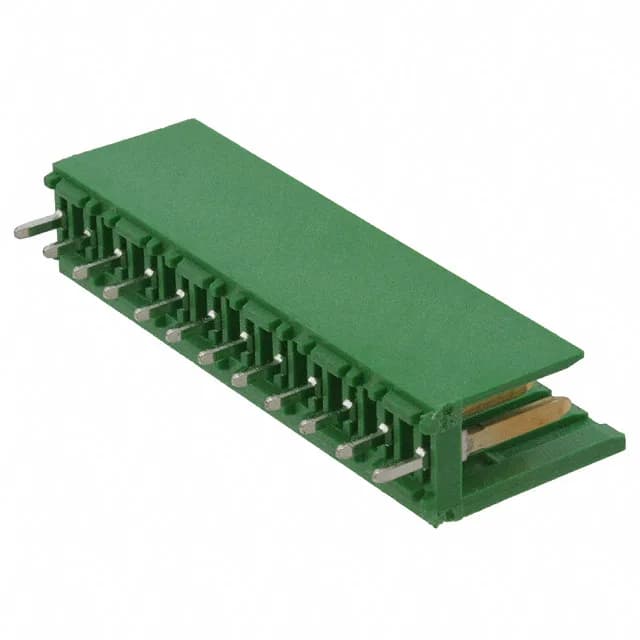

TE Connectivity AMP Connectors AMPMODU Mod I header, order code 280614-2, 12 positions, single row, 0.156" (3.96mm) pitch, gold-plated mating contacts, through-hole, solder termination, shrouded - 2 wall, detent lock.
TE 280614-2 Header, 12 Pos, 3.96mm, Gold, Through Hole
MPN280614-2
Active
TE Connectivity AMP Connectors AMPMODU Mod I header, order code 280614-2, 12 positions, single row, 0.156" (3.96mm) pitch, gold-plated mating contacts, through-hole, solder termination, shrouded - 2 wall, detent lock.
$7.4300Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod I |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.913\" (23.20mm) |
| Insulation material | Polycarbonate, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 12 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.642\" (16.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.394\" (10.00mm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
Where can I buy 280614-2 and how do I get a price?
The 280614-2 is available to order through this listing. Request a quote for current pricing and availability.
