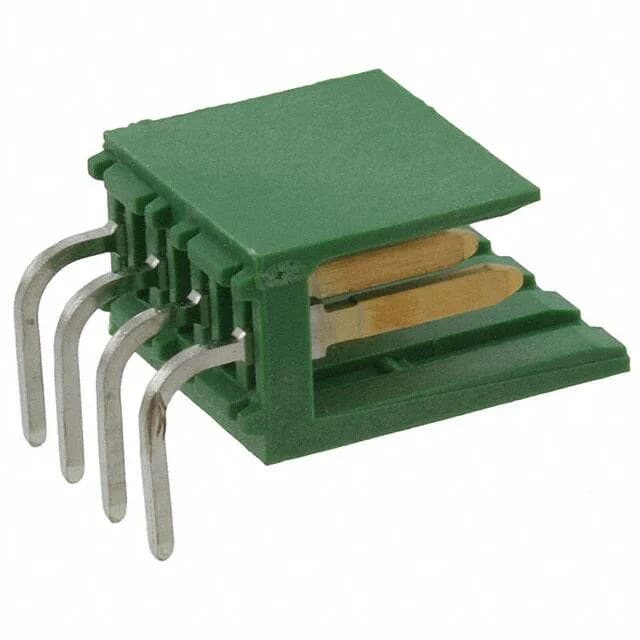

TE Connectivity AMPMODU Mod I header, 280616-2, 4 positions, 3.96mm pitch, through hole right-angle, male pin, gold mating finish, detent lock, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod I |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.346\" (8.80mm) |
| Insulation material | Polycarbonate, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.394\" (10.00mm) |
| Contact finish thickness - mating | 14.5µin (0.37µm) |
The 280616-2: The post side is tin, which solders cleanly into the plated through hole.
A detent lock on the shroud holds the mating receptacle in place — the latch engages audibly and resists vibration-induced separation.
No stock-holding claim — availability and current pricing are established when you submit an RFQ.
The 280616-2 is a 4-position header with a 3.96 mm pitch. It's a single-row, right-angle through-hole part.
The 280616-2 is a shrouded male header with a 3.96 mm pitch and detent lock. Confirm the mating half part number against your assembly drawing.
