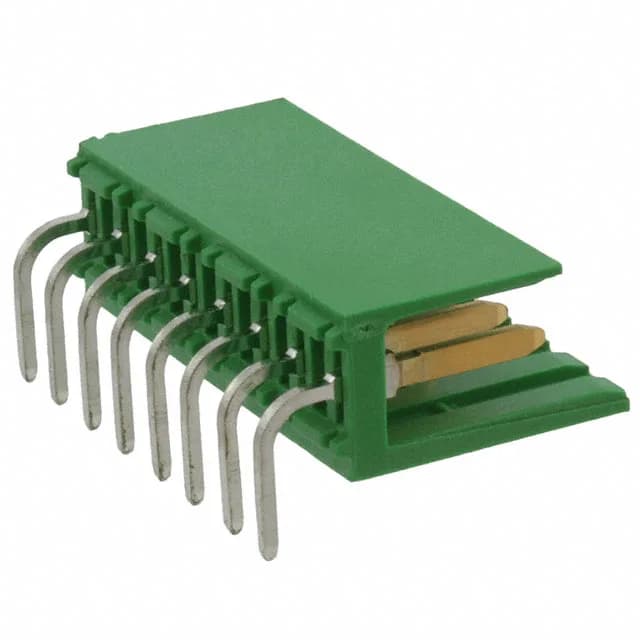

TE Connectivity AMPMODU Mod I, 280618-2, 8-position single-row shrouded header, 0.156" (3.96mm) pitch, right-angle through-hole, gold-plated male pins, detent lock, UL94 V-0 green polycarbonate housing.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod I |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.346\" (8.80mm) |
| Insulation material | Polycarbonate, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.394\" (10.00mm) |
| Contact finish thickness - mating | 14.5µin (0.37µm) |
The 280618-2: The 0.156" (3.96mm) pitch is a wider spacing than the common 2.54mm headers, so the board layout must allocate larger through-holes and wider trace channels between positions.
The detent lock gives a positive mechanical catch against cable pull or vibration, reducing the chance of intermittent contact in moving equipment.
This is a shrouded header from the AMPMODU Mod I series. It mates with a matching AMPMODU Mod I receptacle housing that accepts the appropriate crimp terminals. The exact housing part number depends on wire gauge and circuit count; confirm the mating half against your harness design.
Yes, 280618-2 is ROHS3 compliant per the manufacturer's status.
