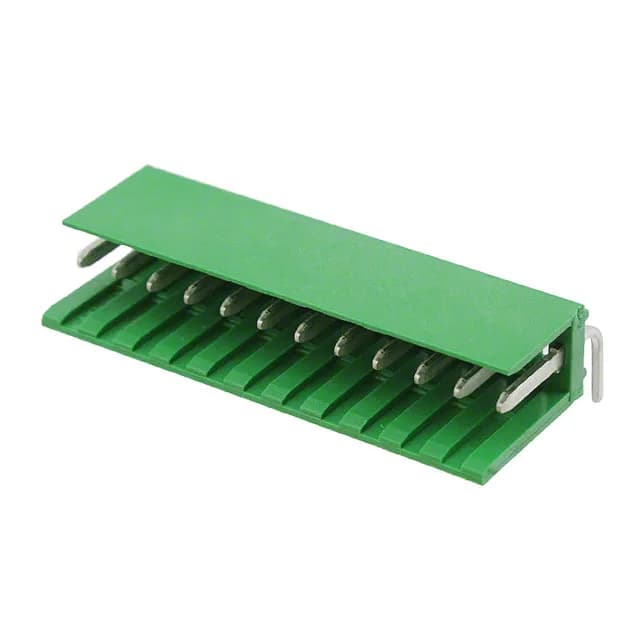

TE Connectivity AMPMODU Mod I header, order code 280620-1, 12 positions, single row, 3.96 mm pitch, Board to Board or Cable, tin-plated mating contacts, through-hole right-angle, solder termination.
TE 280620-1 Header, 12 Pos 3.96mm, AMPMODU Mod I
MPN280620-1
Active
TE Connectivity AMPMODU Mod I header, order code 280620-1, 12 positions, single row, 3.96 mm pitch, Board to Board or Cable, tin-plated mating contacts, through-hole right-angle, solder termination.
$2.0600Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod I |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.346\" (8.80mm) |
| Insulation material | Polycarbonate, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 12 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.394\" (10.00mm) |
Product details
Frequently asked questions
Where can I buy 280620-1 and how do I get a price?
The 280620-1 is orderable through this distributor. Request a quote for the required quantity; pricing and availability are confirmed per RFQ.
What is 280620-1's listed style?
The listed style is Board to Board or Cable, as a shrouded 2-wall header with a detent lock.
