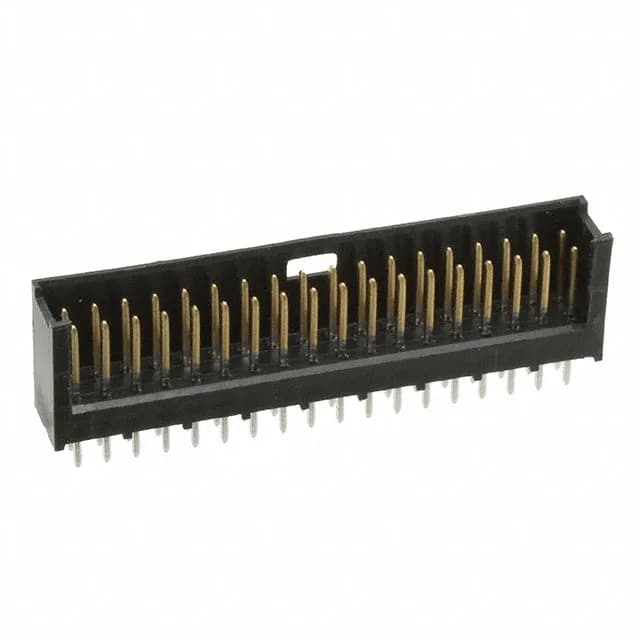

TE Connectivity AMPMODU Mod II header, order code 281019-2, 18 positions, dual row, 0.100" (2.54 mm) pitch, 3 A, 40 V, gold-plated mating contacts, through-hole, solder termination.
TE AMPMODU Mod II 281019-2 Header, 18-Pos 0.100"
MPN281019-2
Active
TE Connectivity AMPMODU Mod II header, order code 281019-2, 18 positions, dual row, 0.100" (2.54 mm) pitch, 3 A, 40 V, gold-plated mating contacts, through-hole, solder termination.
$2.9500Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 40V |
| Current rating | 3A |
| Operating temperature | -40°C ~ 80°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.496\" (12.60mm) |
| Insulation material | Thermoplastic |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Shrouded - 3 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 18 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Overall contact length | 0.563\" (14.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.260\" (6.60mm) |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
What is the board-to-board or cable style of the 281019-2?
The listed style is Board to Board or Cable, meaning it can mate with a receptacle on another PCB or terminate to a cable assembly.
What compliance documentation does TE Connectivity AMP Connectors provide for 281019-2?
RoHS and REACH compliance documentation is available from TE Connectivity upon request.
