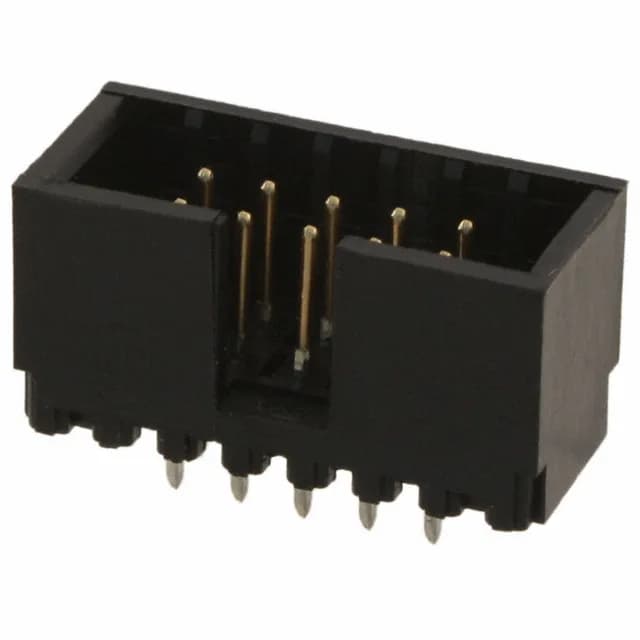

TE Connectivity AMP-Latch header, order code 281271-1, 10 positions, dual row, 0.100" (2.54mm) pitch, gold-plated mating contacts, through-hole, solder termination, shrouded 4-wall.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.402\" (10.20mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Keying Slot |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 281271-1: Gold-plated mating contacts on a brass square pin, shrouded on all four walls with a keying slot, through-hole solder termination.
The 281271-1 is listed as Obsolete by TE Connectivity AMP Connectors.
The 281271-1 is available through independent surplus channels.
A board spin may be required for a functional replacement.
