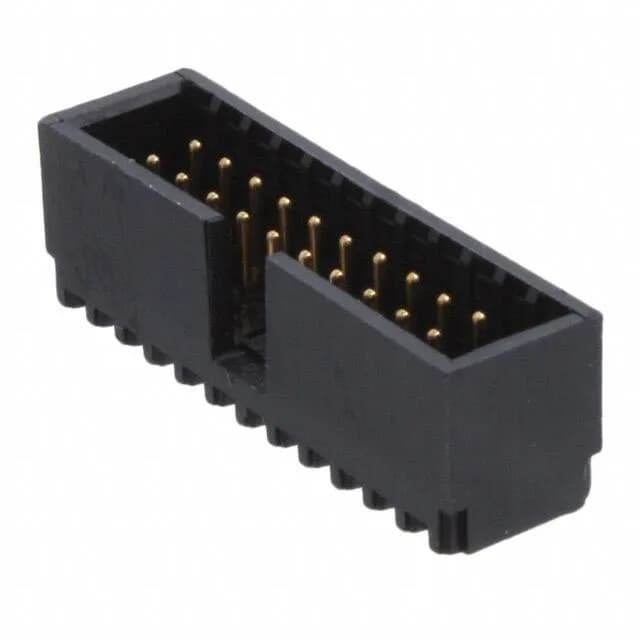

TE Connectivity AMP-Latch header, order code 281274-1, 20 positions, dual row, 0.100" (2.54mm) pitch, gold-plated mating contacts, through-hole solder termination, shrouded 4-wall, push-pull fastening.
TE 281274-1 AMP-Latch Header, 20 Pos, 0.100" Pitch, Obsolete
MPN281274-1
Obsolete
TE Connectivity AMP-Latch header, order code 281274-1, 20 positions, dual row, 0.100" (2.54mm) pitch, gold-plated mating contacts, through-hole solder termination, shrouded 4-wall, push-pull fastening.
$1.9200Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.402\" (10.20mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Keying Slot |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
