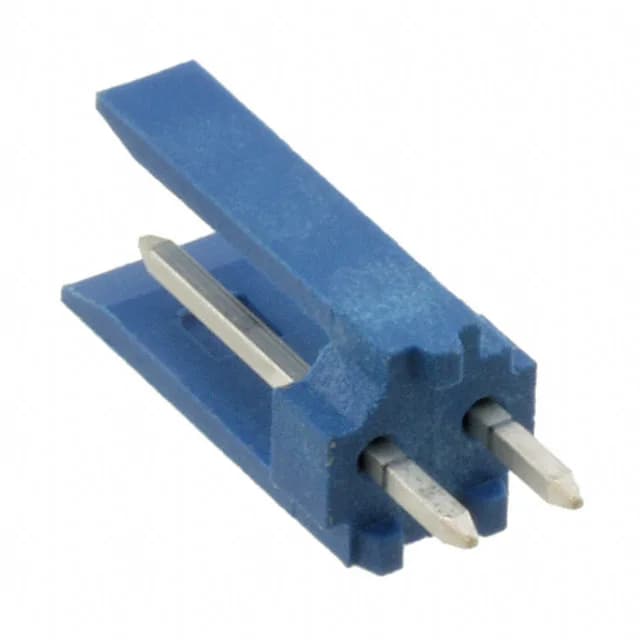

The 281695-2: The 2-wall shroud protects the male square pins during mating and guides the receptacle into alignment — a common detail on HE13/HE14 series headers meant for board-to-cable/wire applications.
281695-2 TE Connectivity AMP Connectors Header 2 Pos 2.54mm
MPN281695-2
Active
TE Connectivity AMP Connectors HE13/HE14 series, 281695-2, Board to Cable/Wire header, 2 positions, 0.100" (2.54mm) pitch, shrouded - 2 wall, friction lock, through hole, solder termination, tin contacts, blue thermoplastic housing, UL94 V-0.
$0.7800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesHE13/HE14
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | HE13/HE14 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Operating temperature | -40°C ~ 100°C |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.449\" (11.40mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Overall contact length | 0.492\" (12.50mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.276\" (7.00mm) |
Product details
Frequently asked questions
What is the pin configuration of 281695-2?
It is a 2-position, single-row header with all positions loaded.
