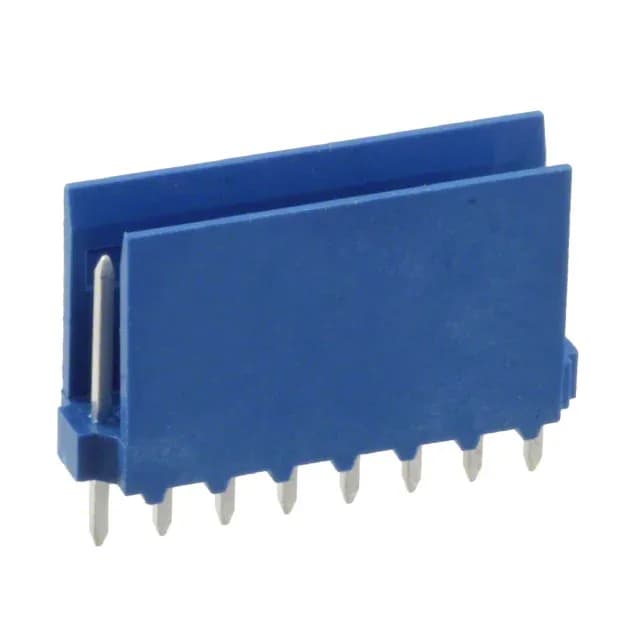

TE Connectivity AMP Connectors HE13/HE14 series header, 8 positions, 2.54mm pitch, single row, through-hole, tin-plated male pins, friction lock, UL94 V-0 blue thermoplastic housing.
| Parameter | Value |
|---|---|
| Series | HE13/HE14 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Operating temperature | -40°C~100°C |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.449\" (11.40mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Overall contact length | 0.492\" (12.50mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.276\" (7.00mm) |
The 281695-8: The friction lock and 2-wall shrouding mean the connector stays mated under light vibration without a secondary latch.
The header mates with HE13/HE14 series crimp-socket housings (e.g., TE 281696-x or 281698-x families) that accept 22-28 AWG wire. Confirm the mating half part number against your wire gauge and circuit count.
The 281695-8 is available through independent distribution.
It mates with HE13/HE14 series crimp-socket housings. Look for TE part numbers starting with 281696 or 281698, which accept 22-28 AWG wire.
