Board-to-wire header with shrouded lock
The 2-wall shroud and friction lock provide positive retention and keying, reducing the risk of mis-mating or accidental disconnection in moderate vibration environments.

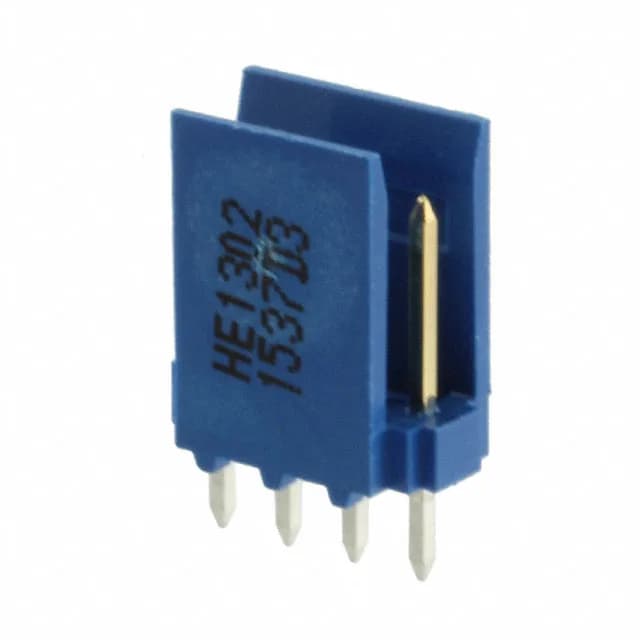

281696-4 TE Connectivity HE13/HE14 Header, 4 Pos, 2.54mm
MPN281696-4
Active
TE Connectivity AMP Connectors HE13/HE14 series, Header, 4 Positions, 0.100" (2.54mm) Pitch, Through Hole, Solder Termination, Shrouded - 2 Wall, Friction Lock, Gold Mating Finish, UL94 V-0, -40°C ~ 100°C, Bulk
$1.0000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesHE13/HE14
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | HE13/HE14 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Operating temperature | -40°C ~ 100°C |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.449\" (11.40mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Overall contact length | 0.492\" (12.50mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.276\" (7.00mm) |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | 16.0µin (0.41µm) |
Product details
Frequently asked questions
What is the pitch of 281696-4?
The pitch is 0.100" (2.54mm), standard for many wire-to-board and IDC connectors.
Is the 281696-4 shrouded and what lock features does it have?
Yes, it is shrouded with a 2-wall shroud and includes a friction lock for secure mating.
What is the mating connector for 281696-4?
Confirm the specific mating part number from the series documentation.
