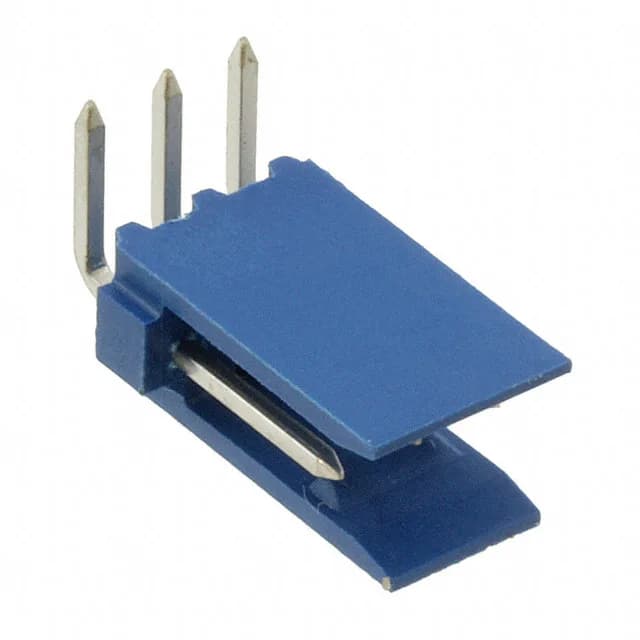

TE Connectivity AMP Connectors HE13/HE14 series header, 281698-3, 3 positions, 0.100" (2.54mm) pitch, single-row, right-angle through-hole, shrouded 2-wall, tin-plated male pins, friction lock, UL94 V-0 blue thermoplastic housing.
| Parameter | Value |
|---|---|
| Series | HE13/HE14 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Operating temperature | -40°C ~ 100°C |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.276\" (7.00mm) |
Its 0.100" (2.54mm) pitch sets the board footprint and the per-contact current ceiling — at the standard 3 A per contact for tin-plated HE13/HE14 headers, the temperature rise stays within the UL94 V-0 housing limit.
Ensures correct cable assembly or socket is selected for the system.
Critical for design engineers to verify it meets system current requirements.
Required for regulatory compliance in many markets and applications.
Directly drives purchasing decision and transaction.
Affects production scheduling and urgency of sourcing.
Needed for wiring and connection verification in circuit design.
