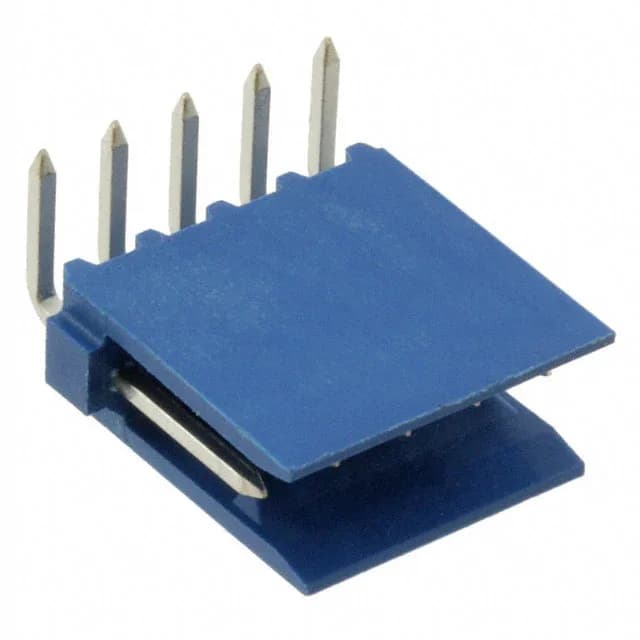

5-Pin Right-Angle Header with Friction Lock
The 281698-5 is a 5-position single-row header from the HE13/HE14 series, pitched at 0.100" (2.54mm) — the standard grid for wire-to-board connections on prototype and production boards alike. It terminates through-hole with a right-angle orientation, so the mated cable exits parallel to the PCB — useful when board-edge clearance is tight. The friction lock holds the mating receptacle in place under light vibration without a secondary latch, which saves a panel-mount step in many industrial control and sensor harness builds.
Pitch, Plating, and Operating Range
Mating pins are tin-plated on a phosphor bronze base — a standard signal-grade finish for moderate mating cycles in dry indoor environments. The operating temperature spans -40°C to 100°C, covering most commercial and light industrial enclosures. Insulation is rated UL94 V-0, so the header meets the flame-retardant requirement for equipment inside a UL-listed cabinet.
Sourcing and Lifecycle Status
Sourced to order against the BOM quantity — current pricing and lead time confirmed at quote time.
