The 281699-3: Mating contacts are gold-plated (16.0µin / 0.41µm) over phosphor bronze; the post finish is tin (98.4µin / 2.50µm).
Mounting and mating
The friction lock secures the mating half without additional hardware.

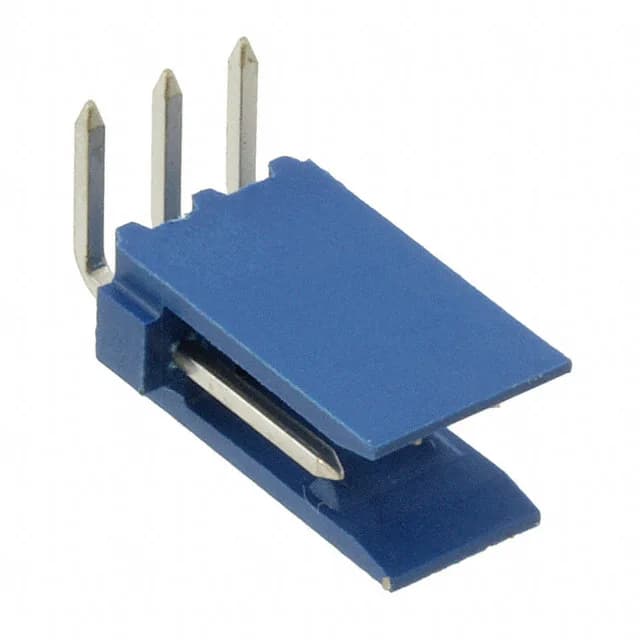

TE 281699-3 Header, 3-Pos, 2.54mm, Through Hole Right Angle
MPN281699-3
Active
TE Connectivity AMP Connectors HE13/HE14 header, order code 281699-3, 3 positions, single row, 0.100" (2.54mm) pitch, gold-plated mating contacts, through hole right-angle, solder termination, friction lock.
$0.5808Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | HE13/HE14 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Operating temperature | -40°C~100°C |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.276\" (7.00mm) |
| Contact finish thickness - post | 98.4µin (2.50µm) |
| Contact finish thickness - mating | 16.0µin (0.41µm) |
Product details
Frequently asked questions
How do I get current pricing and availability for 281699-3?
Pricing and stock are confirmed at RFQ.
What is 281699-3's listed style and series?
The style is Board to Cable/Wire and the series is HE13/HE14.
