Six positions, 2.54mm pitch, friction-lock retention
Through-hole solder, 2.90mm post length
Termination is through-hole solder with a 0.114" (2.90mm) post length — the board hole pattern matches the 0.100" row spacing.

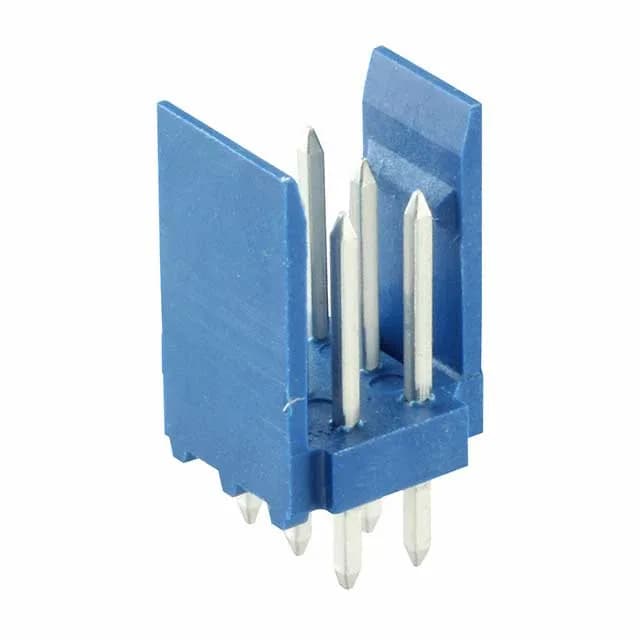

281739-3 TE Connectivity Header, 6 Pos, 2.54mm
MPN281739-3
Active
TE Connectivity AMP Connectors HE13/HE14 series, 281739-3, Board to Cable/Wire header, 6 circuits, 2 rows, 0.100" (2.54mm) pitch, shrouded 2-wall, friction lock, through-hole solder, tin-plated male pins, UL94 V-0 blue thermoplastic, -40°C to 100°C.
$1.2700Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesHE13/HE14
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | HE13/HE14 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Operating temperature | -40°C ~ 100°C |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.449\" (11.40mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Overall contact length | 0.492\" (12.50mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.276\" (7.00mm) |
Product details
Frequently asked questions
How can I order the 281739-3 or check stock?
The 281739-3 is an active TE Connectivity part. We source it per RFQ — submit your target quantity and we'll confirm current pricing and lead time. No stock-holding claim; availability is verified at quote time.
What is the mating connector for the 281739-3?
The 281739-3 mates with a HE13/HE14 series receptacle housing (crimp or IDC type) that accepts the same 0.100" pitch, 6-position, dual-row layout. The friction lock on the header engages with the latch on the receptacle.
Is the 281739-3 RoHS compliant?
Yes, the 281739-3 is RoHS compliant per the manufacturer's listing.
