0.100" Pitch, 10-Position Dual-Row Header

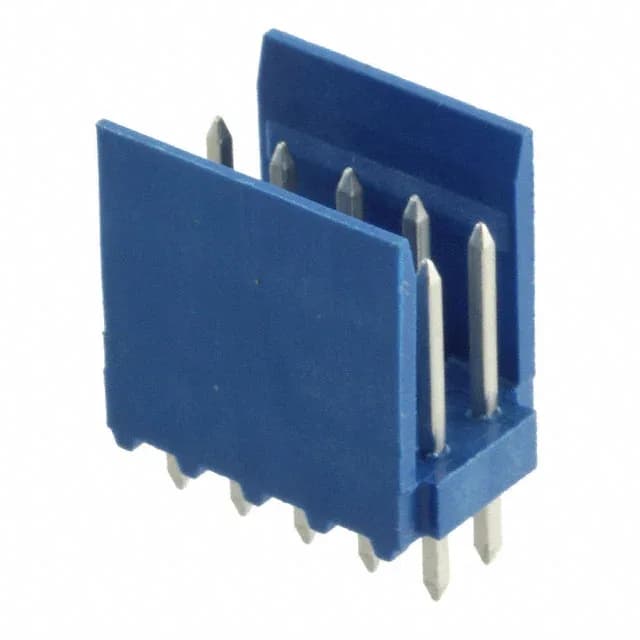

The 281739-5: The shrouded body with a friction lock mates to a matching receptacle housing — the lock prevents the pair from separating under cable tug or machine vibration. Tin-plated male pins, square profile, rated for general-purpose wire-to-board duty.
ROHS3 compliant.
The 0.449" (11.40 mm) insulation height clears most components underneath.
Thermoplastic housing rated UL94 V-0 — the highest common flammability class for equipment inside an enclosure. Operating temperature from -40°C to 100°C covers most indoor industrial and commercial environments.
Peer Comparison: 10 vs 12 Positions
Both share the 0.100" pitch and friction lock. The 281739-5 is vertical, 2-wall shrouded, and lacks the flange — it fits where board-edge clearance is tight and a right-angle header won't route.
