TE Connectivity AMP Connectors 281739-6 — Pin Headers

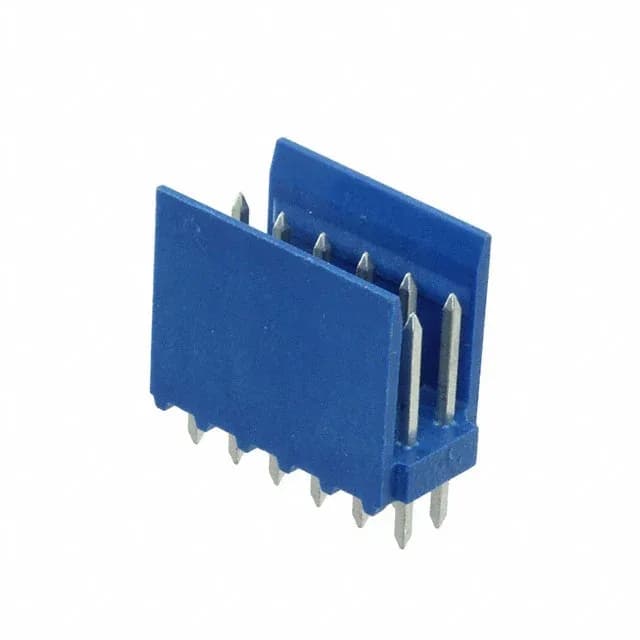

281739-6 TE Connectivity Header, 12 Pos, 2.54mm Pitch

MPN281739-6
Active

TE Connectivity AMP Connectors HE13/HE14 series, 12-position, 2-row, 0.100" (2.54mm) pitch, shrouded 2-wall header, friction lock, through-hole solder termination, tin-plated contacts, UL94 V-0.

$2.2700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesHE13/HE14
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

281739-6 key specifications
ParameterValue
SeriesHE13/HE14
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Operating temperature-40°C ~ 100°C
Contact materialPhosphor Bronze
Insulation colorBlue
Insulation height0.449\" (11.40mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

281739-6 additional specifications
ParameterValue
PackageBulk
ShroudingShrouded - 2 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions12
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.114\" (2.90mm)
Overall contact length0.492\" (12.50mm)
Contact finish - matingTin
Contact length - mating0.276\" (7.00mm)

Product details

Pitch, position count, and the friction lock

The 281739-6: The friction lock on the shroud holds the mating housing in place; you should hear it click when the pair is fully seated, which keeps the connection from backing out under vibration.

Flammability and material compliance

The part is ROHS3 compliant.

Mating and termination details

The header mates with the corresponding HE13/HE14 receptacle housing (sold separately). Termination is through-hole solder — the 0.114" (2.90mm) post length fits standard PCB hole sizes for wave or hand soldering.

Frequently asked questions

Does 281739-6 have a friction lock?

Yes, the header has a friction lock on the shroud that engages with the mating housing for positive retention.

What is the pitch of 281739-6?

The mating pitch is 0.100" (2.54mm), which is the standard 0.1-inch grid spacing.

What connectors mate with 281739-6?

It mates with the corresponding HE13/HE14 series receptacle housing. The friction lock is the keying feature — confirm the mating half has the matching lock profile.
