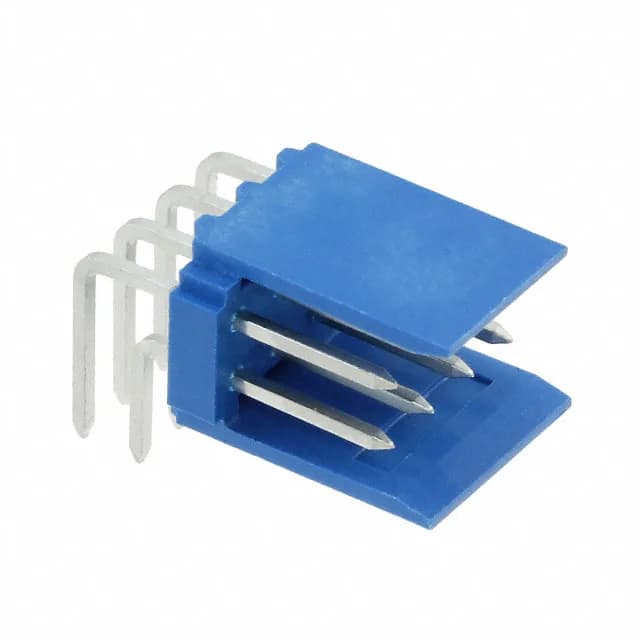

TE Connectivity AMP Connectors HE13/HE14 series, 281742-4, 8-position single-row male header, 0.100" (2.54mm) pitch, through-hole right-angle solder termination, shrouded 2-wall, friction lock, tin-plated contacts, UL94 V-0, blue insulation.
| Parameter | Value |
|---|---|
| Series | HE13/HE14 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Operating temperature | -40°C ~ 100°C |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.300\" (7.62mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.276\" (7.00mm) |
No stock-holding claim; quoted per RFQ.
Within the HE13/HE14 family, the 8-position 281742-4 sits between the 6-position 953440-3 and the 12-position 1379030-3. The 12-position variant (1379030-3) adds a board lock and mounting flange, which may be preferred if the connector sees higher cable strain. For a simple 8-circuit harness, the 281742-4's 2-wall shroud and friction lock are sufficient.
Yes, 281742-4 is ROHS3 compliant.
This header mates with a standard 0.100" pitch HE13/HE14 receptacle housing that accepts 2.54mm pitch crimp terminals. The friction lock on the header engages the corresponding latch on the receptacle.
