Tin-Plated Contacts and UL94 V-0 Housing
The 281742-8: Tin is cost-effective but frets under high vibration or frequent disconnect; for field-service gear with quarterly cycling, tin holds up well.
281742-8 TE Connectivity Header, 16 Pos, 0.100" Pitch
MPN281742-8
Active

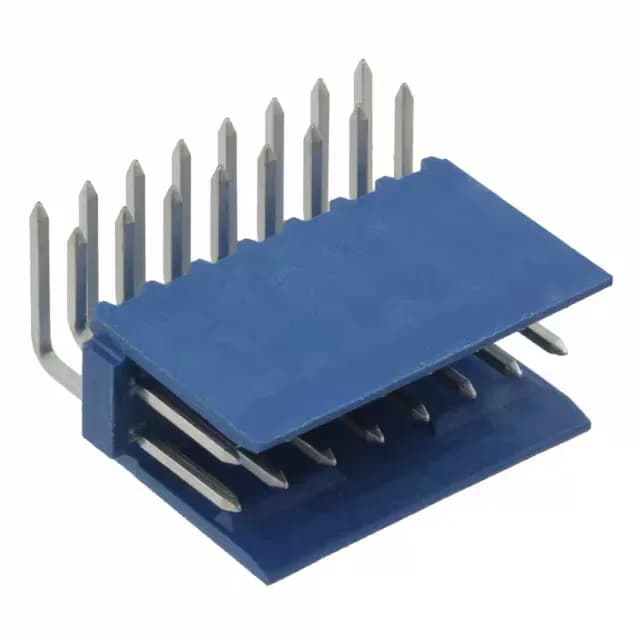

TE Connectivity AMP Connectors HE13/HE14 series header, 16 positions, 0.100" (2.54mm) pitch, right-angle through-hole, shrouded 2-wall with friction lock, tin-plated male pins, UL94 V-0.
$1.9300Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesHE13/HE14
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | HE13/HE14 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Operating temperature | -40°C~100°C |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.300\" (7.62mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.276\" (7.00mm) |
Product details
Frequently asked questions
Is 281742-8 a right-angle header?
Yes, it is a right-angle through-hole header — the pins exit parallel to the PCB, suitable for board-edge cable routing.
What is the pitch of 281742-8?
The mating pitch is 0.100" (2.54mm), standard for the HE13/HE14 series. Row spacing is also 0.100" (2.54mm).
Is 281742-8 compatible with HE13/HE14 series connectors?
Yes, it is part of the HE13/HE14 series and mates with HE13/HE14 receptacles. Verify the receptacle pitch and circuit count match before ordering.
