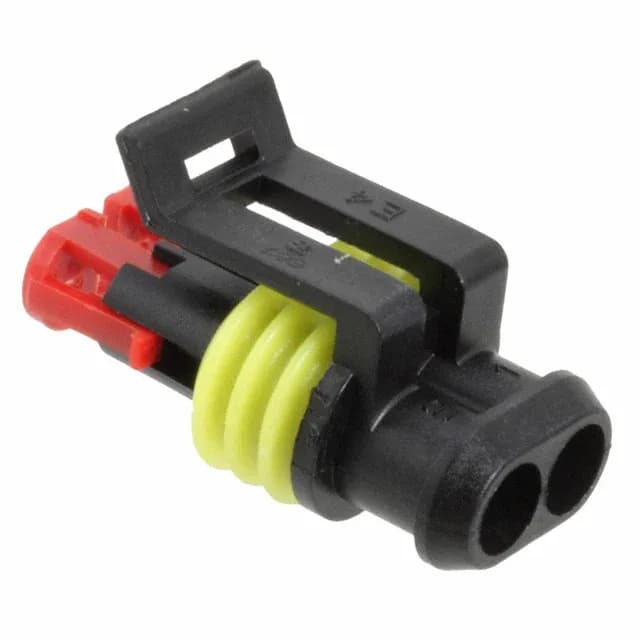

2-Position Superseal Plug Housing — 282080-1
6.00 mm Pitch — Fit Check Before You Order
If the cavity spacing on the other half is 6.00 mm center-to-center, this housing mates correctly. Any other pitch and it won't latch — the latch lock geometry is tied to the 6.00 mm spacing. The single-row layout with 2 positions means the housing is narrow, suited for point-to-point connections where board space or bundle diameter is tight.
Contacts Not Included — Avoid the Sourcing Trap
This housing ships empty. The contacts must be ordered separately — the TE Superseal female socket terminals (crimp style) are what actually carry current and grip the wire. Without them, the housing is just a plastic shell with latch locks.
Latch Lock and Temperature Range — Built for Vibration and Heat
No secondary lock or screw is needed for most applications.
Mating Half and Contact Cross-Reference
The 282080-1 mates with the Superseal receptacle housing of the same 2-position, 6.00 mm pitch configuration — the receptacle is the female side that accepts the male tab terminals. For the contacts, TE Superseal female socket terminals (crimp) are the correct fit; common order codes include the 282403 series, but confirm the exact terminal against the wire gauge and current requirement for your application. No official second-source cross-reference is on record, so stick with TE Superseal components for guaranteed seal and latch compatibility.
