TE Connectivity Superseal 1.5 plug housing, 2 circuits, 6.00 mm pitch, 1 row, latch lock, free-hanging, crimp termination, contacts not included, green PA66 housing, -40°C to 125°C.
| Parameter | Value |
|---|---|
| Series | Superseal |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Fastening type | Latch Lock |
| Operating temperature | -40°C ~ 125°C |
| Color | Green |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.236\" (6.00mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 2 |

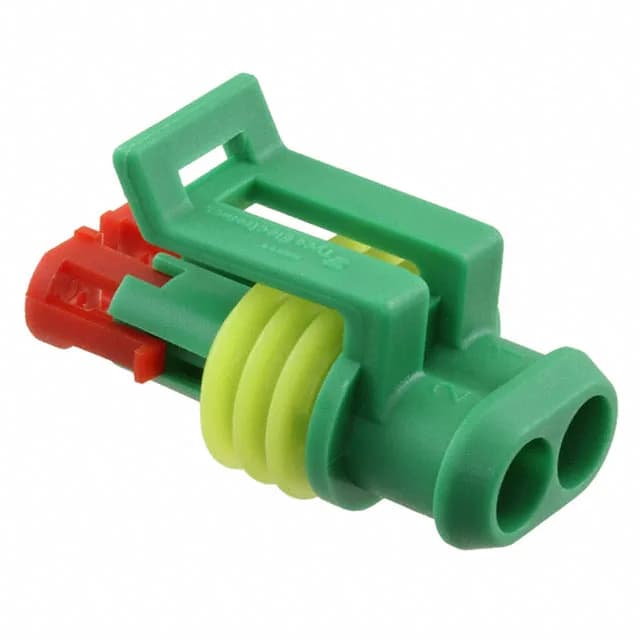

The TE Connectivity 282080-3 is a 2-position Superseal 1.5 plug housing, built for a 6.00 mm pitch and a single row of female socket contacts. The green glass-filled PA66 shell carries a latch lock that snaps into the matching receptacle and stays locked under engine vibration or machine shock. The housing comes with no contacts — you order the Superseal 1.5 female socket crimp terminals separately.
No, the listing explicitly notes Contacts Not Included. You must order the matching Superseal 1.5 female socket crimp terminals separately to complete the wire-to-board connection.
The pitch is 6.00 mm (0.236"). That is the centerline spacing between the two contact cavities and the dimension that must match the mating receptacle housing.
Yes, the housing is designed for the Superseal 1.5 female socket crimp terminals. Confirm the terminal part number against your wire gauge before ordering — the housing accepts only the Superseal 1.5 terminal family.
