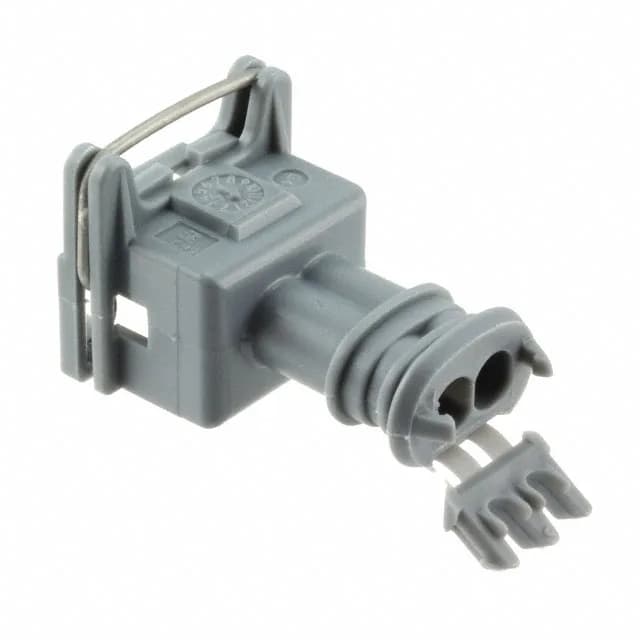

TE Connectivity Junior Power Timer receptacle housing, 282189-2, 2 positions, 1 row, 5.00mm pitch, free hanging (in-line), crimp termination, splash-proof, gray PA66, -30°C to 125°C, contacts not included.
| Parameter | Value |
|---|---|
| Series | Junior Power Timer |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Operating temperature | -30°C ~ 125°C |
| Color | Gray |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Note | Contacts Not Included |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Splash-Proof |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 2 |
The 5.00mm pitch gives enough spacing for 20–16 AWG power circuits while keeping the connector compact for tight harness routings. The housing is splash-proof, so it handles moisture exposure in engine bays, outdoor equipment, or washdown areas without a secondary boot.
You'll need the matching female crimp terminals (TE part numbers vary by wire gauge). RoHS compliance is confirmed on the line.
Yes, the housing is listed as splash-proof, making it suitable for outdoor, engine-bay, or washdown applications where moisture exposure is intermittent.
