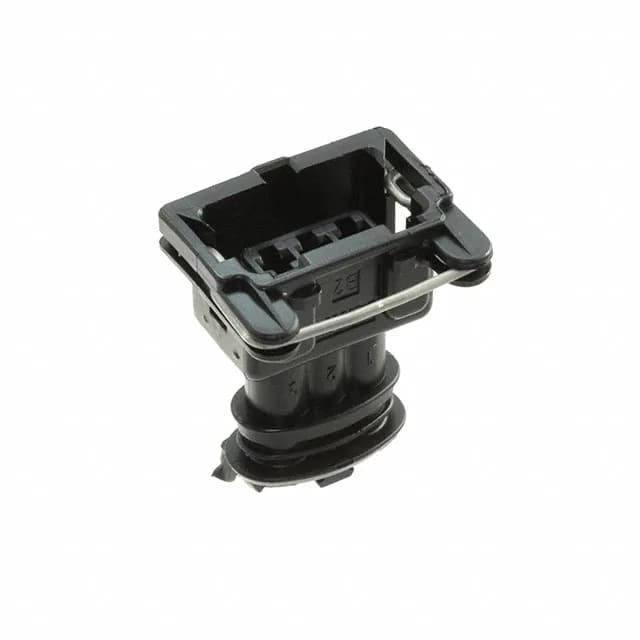

3-Position Splash-Proof Receptacle Housing
The natural PA66 housing carries a splash-proof rating, which means the mated assembly resists incidental water spray, not full submersion.
Three positions at 5.00 mm pitch means each circuit has enough creepage distance for 48V or low-voltage automotive power without tracking across the nylon surface — the limiting factor is the crimp terminal's current rating, not the housing. The splash-proof feature is a secondary seal on the mating interface — it protects against road spray or washdown splatter, but the connector is not IP67-rated for submersion. For a sealed harness, pair it with a compatible Junior Power Timer plug housing and the correct seal-capped terminals.
It mates with the corresponding Junior Power Timer plug housing (male pin side) of the same 3-position, 5.00 mm pitch layout. Termination is crimp: you insert the female socket contact into the cavity until the latch clicks. The single-row arrangement keeps the wire exit in one plane, which simplifies routing in a tape-wrapped harness bundle. The natural colour is unpigmented PA66 — no dye to degrade under UV or heat.
