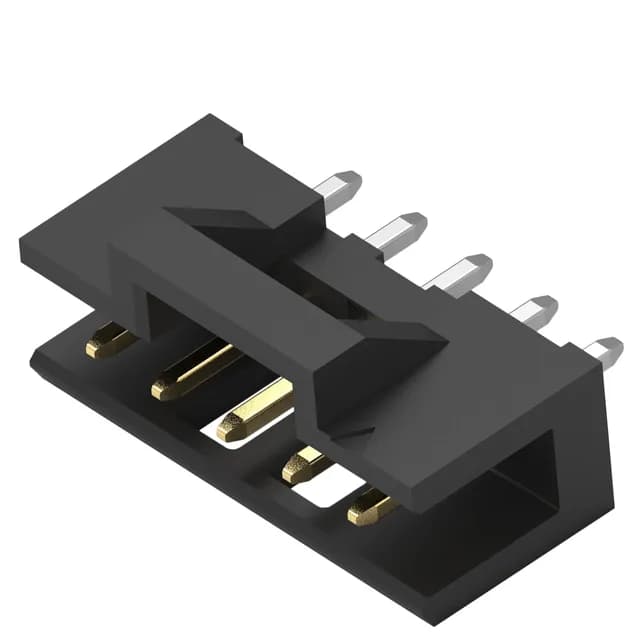

TE Connectivity AMP Connectors AMPMODU 2MM, Header, 6 Positions, 1 Row, 2.00 mm Pitch, Through Hole, Solder, Gold Mating Finish, 2 A, 125 VAC/DC, Black Thermoplastic Housing, UL94 V-0
| Parameter | Value |
|---|---|
| Series | AMPMODU 2MM |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 125VAC/DC |
| Current rating | 2A |
| Operating temperature | -40°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.217\" (5.50mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Pick and Place |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.80mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 157.5µin (4.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 2823402-6: This is a 6-position, single-row header on a 2.00 mm pitch — the footprint matches the AMPMODU 2MM receptacle, and the 0.079" spacing keeps the routing density higher than a 0.100" pitch without forcing micro-vias.
Push-pull fastening means the connector pair is held by friction and the shroud geometry, not a latch — suitable for low-vibration environments where a locking mechanism isn't required.
It is a 6-position, single-row header. All positions are loaded.
