6-position shrouded header for board-to-board or cable duty
The 2823410-6 is the 6-circuit member of TE's AMPMODU 2MM header line, a shrouded 2-wall design for board-to-board or cable connections.

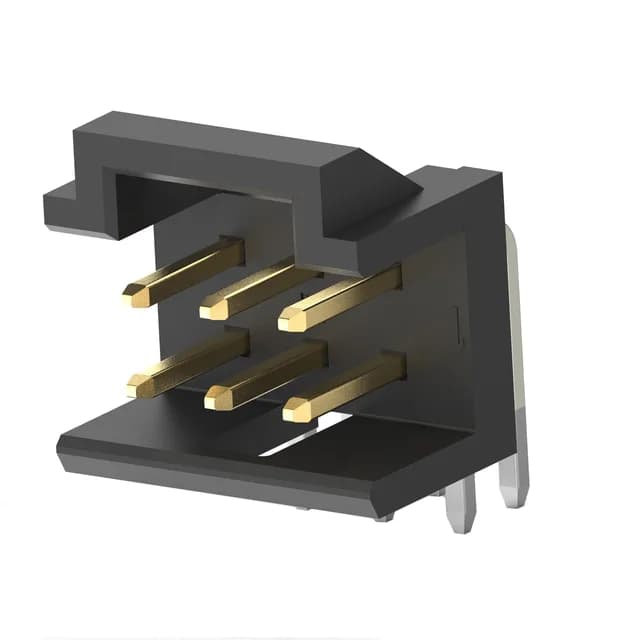

TE 2823410-6 Header, 6-Pos 2.00mm, AMPMODU 2MM
MPN2823410-6
Active
TE Connectivity AMPMODU 2MM header, order code 2823410-6, 6 positions, dual row, 2.00 mm pitch, 2 A, 125 VAC/DC, gold-plated mating contacts, through-hole right-angle, solder termination.
$1.0330Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU 2MM |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 125VAC/DC |
| Current rating | 2A |
| Operating temperature | -40°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.303\" (7.70mm) |
| Insulation material | Thermoplastic |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 6 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.80mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 157.5µin (4.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
What is the 2823410-6 style and series?
The style is Board to Board or Cable, and the series is AMPMODU 2MM.
