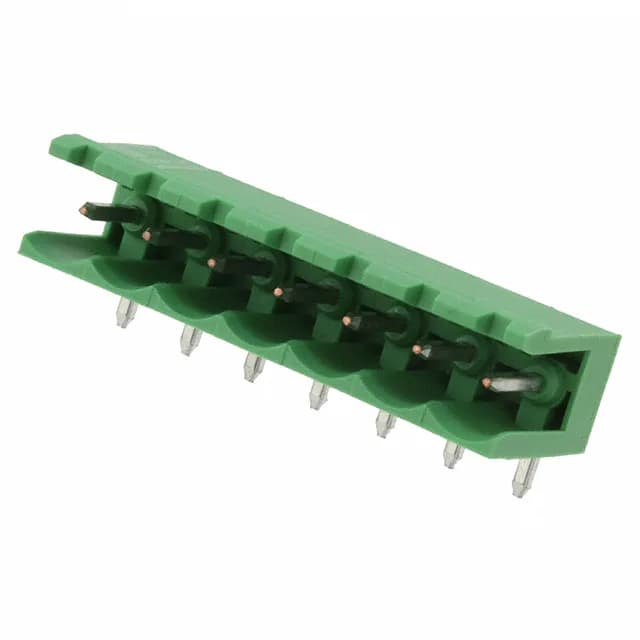

TE Connectivity Buchanan header, order code 282812-7, 7 positions, single level, 5.00 mm pitch, 15 A, 300 V, tin-plated mating contacts, through-hole right-angle, solder termination, bulk.
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (2 Side) |
| Series | Buchanan |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.329\" (8.36mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Side Stacking |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 7 |
| Positions per level | 7 |
| Contact mating finish | Tin |
The 282812-7 is the 7-circuit member of TE's Buchanan shrouded header line, a through-hole right-angle part with tin-plated contacts rated 15 A at 300 V.
The 282812-7 carries an Active product status. No official successor or pin-compatible alternative is recorded in the Buchanan series — match the 7-circuit count and 5.00 mm pitch to the mating receptacle.
The 282812-7 is a Header, Male Pins, Shrouded (2 Side) from the Buchanan series.
